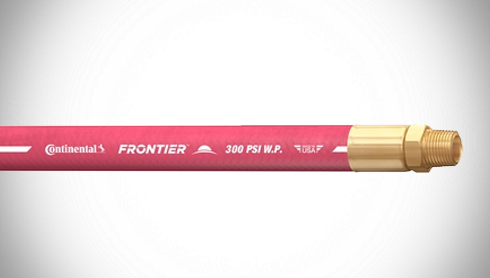

20147629 Frontier™ by ContiTech | 300 Air / Multipurpose Hose | Continental | 0.50" (1/2") ID | 1/2" Male NPT x 1/2" Male NPT | 300 PSI | Red | 50ft

Minimum Order Quantity: 30 Assemblies

$96.89 - $96.89

$96.89

$98.18

$98.18 - $98.18

$98.18

Continental ContiTech Frontier™ 300 Air & Multipurpose Hose

An economical air and water hose, Frontier™ is for a wide range of industrial, construction and agricultural applications.

Quantity

Specifications for Variant SKU: 20147629 ContiTech
Brand:	Frontier 300
Series:	Frontier 300
Hose Color(s):	Red
Internal Diameter:	0.50in
Outer Diameter:	0.84in
Tubing Construction:	EPDM
Cover Construction:	EPDM
Ends Configuration:	Some Ends Match, 1/2in Male NPT, 1/2in Male NPT

SPECIFICATIONS

Application:	Air, water, industrial, construction, agricultural applications.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance)
Reinforcement:	Spiral synthetic yarn, 2" is braided	Cover:	Black, Red, Yellow, Green or Blue EPDM synthetic rubber Class C (Limited Oil Resistance)
Temperature Range:	-40°F to 210°F (-40°C to 99°C)	Fittings:	N/A
Branding:	1/2" Frontier™ Continental ContiTech 300 psi WP

Red Part Number	Yellow Part Number	Green Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Red Order Code	Yellow Order Code	Green Order Code
Red Part Number	Yellow Part Number	Green Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Red Order Code	Yellow Order Code	Green Order Code
20026960	-	-	1/4"	6.4mm	0.53"	13.5mm	300 PSI	2.07 MPa	500ft	0.10 lbs./ft.	0.15 kg/m	56955706400200	-	-
20026967	-	-	5/16"	6.40mm	0.53"	13.40mm	300 PSI	2.07 MPa	500ft	0.161 lbs./ft.	-	56955707900200	-	-
20026971	20127382	-	3/8"	9.5mm	0.70"	17.8mm	300 PSI	2.07 MPa	500ft	0.17 lbs./ft.	0.25 kg/m	56955709500200	56951609500200	-
20026980	20127385	-	1/2"	12.7mm	0.84"	21.3mm	300 PSI	2.07 MPa	500ft	0.22 lbs./ft.	0.33 kg/m	56955712700200	56951612700200	-
20026985	20026845	20048519	3/4"	19.1mm	1.15"	29.2mm	300 PSI	2.07 MPa	500ft	0.37 lbs./ft.	0.55 kg/m	56955719100200	56951619100200	56956019100200
20026992	20026859	20048546	1"	25.4mm	1.48"	37.3mm	300 PSI	2.07 MPa	450ft	0.58 lbs./ft.	0.86 kg/m	56955725400200	56951625400200	56956025400200

Coupled Lengths
Red Part Number	Coupling	Length	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Weight		Red Order Code
Red Part Number	Coupling	Length	in.	mm	in.	mm	PSI	MPa	lb./ft.	kg/m	Red Order Code
20147625	1/4" Male NPT x 1/4" Male NPT	50ft	1/4"	6.4mm	0.53"	13.5mm	300 PSI	2.07 MPa	0.10 lbs./ft.	0.15 kg/m	56955706450301
20147626	1/4" Male NPT x 1/4" Male NPT	100ft	1/4"	6.4mm	0.53"	13.5mm	300 PSI	2.07 MPa	0.10 lbs./ft.	0.15 kg/m	56955706450601

20134965	1/4" Male NPT x 1/4" Male NPT	25ft	3/8"	9.5mm	0.70"	17.8mm	300 PSI	2.07 MPa	0.17 lbs./ft.	0.25 kg/m	56955709532501
20147627	1/4" Male NPT x 1/4" Male NPT	50ft									56955709550901
20147628	1/4" Male NPT x 1/4" Male NPT	100ft									56955709551201

20147629	1/2" Male NPT x 1/2" Male NPT	50ft	1/2"	12.7mm	0.84"	21.3mm	300 PSI	2.07 MPa	0.22 lbs./ft.	0.33 kg/m	56955712751501
20147650	1/2" Male NPT x 1/2" Male NPT	100ft	1/2"	12.7mm	0.84"	21.3mm	300 PSI	2.07 MPa	0.22 lbs./ft.	0.33 kg/m	56955712751801

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
