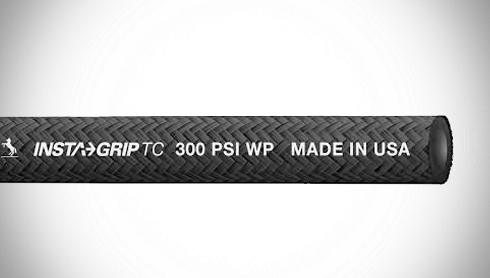

20022593 Insta-Grip™ by ContiTech | TC Push-On Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 300 PSI | Black | 500ft

20022593 Insta-Grip™ by ContiTech | TC Push-On Air / Multipurpose Hose | Continental | 0.25" (1/4") ID | 300 PSI | Black | 500ft

Save $38.12 Save $38.12
$1,538.52
$1,538.52 - $1,538.52
$1,538.52
$1,500.40
$1,500.40 - $1,500.40
$1,500.40

Continental ContiTech Insta-Grip™ TC Push-on Air & Multipurpose Hose

For low-pressure hydraulic and pneumatic systems such as shop air systems, general industrial, maintenance and automotive assembly applications.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 20022593 ContiTech | 500 |
Brand: Insta-Grip TC
Series: Insta-Grip TC
Hose Color(s): Black
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Synthetic Rubber
Cover Construction: Textile Braid

SPECIFICATIONS

Application: Low-pressure hydraulic, pneumatic systems, shop air systems, general industrial, maintenance, automotive assembly. SAE Rating: N/A
Other Ratings: N/A Tube: Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: One braided high-strength synthetic yarn laid at an angle for strength and coupling holding ability Cover: Black, dyed textile braid, mildew and oil-resistant
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: Insta-Grip™ TC 3/8" 300 psi WP Made in USA Continental ContiTech
Black
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Bend
Radius		 Length Weight Black
Order Code
in. mm in. mm PSI MPa in. mm lb./ft. kg/m
20022593 1/4" 6.4mm 0.50" 12.7mm 300 PSI 2.07 MPa 3" 64mm 500ft 0.08 lbs./ft. 0.12 kg/m 53523000800400
20022595 5/16" 7.9mm 0.56" 14.2mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.09 lbs./ft. 0.13 kg/m 53523001000400
20022597 3/8" 9.5mm 0.64" 16.3mm 300 PSI 2.07 MPa 3" 76mm 500ft 0.11 lbs./ft. 0.16 kg/m 53523001200400
20022600 1/2" 12.7mm 0.75" 19.1mm 300 PSI 2.07 MPa 5" 127mm 500ft 0.13 lbs./ft. 0.19 kg/m 53523001600400
20022602 5/8" 15.9mm 0.91" 23.1mm 300 PSI 2.07 MPa 6" 152mm 500ft 0.19 lbs./ft. 0.28 kg/m 53523002000400
20022604 3/4" 19.1mm 1.03" 26.2mm 300 PSI 2.07 MPa 7" 178mm 500ft 0.21 lbs./ft. 0.31 kg/m 53523002400400

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
