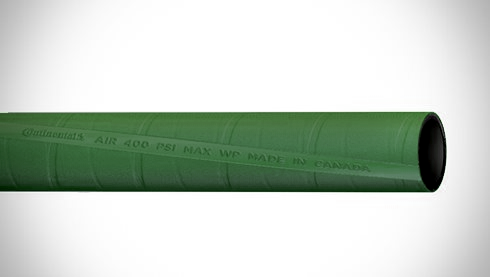

20018832 Plicord® by ContiTech | Air 400 Heavy Duty Air / Multipurpose Hose | Continental | 3.00" (3") ID | 400 PSI | Green | 100ft

20018832 Plicord® by ContiTech | Air 400 Heavy Duty Air / Multipurpose Hose | Continental | 3.00" (3") ID | 400 PSI | Green | 100ft

Minimum Order Quantity: 4 Lengths

$2,678.86 - $2,678.86
$2,678.86
$2,714.77
$2,714.77 - $2,714.77
$2,714.77

Continental ContiTech Plicord® Air 400 Heavy Duty Air & Multipurpose Hose

A versatile, heavy-duty air hose for use in rough industrial applications or for severe service in mines, quarries and construction jobs.

FREE DOMESTIC SHIPPING!!!

Package Quantity: 100 FT

Specifications for Variant SKU: 20018832 ContiTech | 100 |
Brand: Plicord Air
Series: Plicord Air
Hose Color(s): Green
Internal Diameter: 3in
Outer Diameter: 3.70in
Tubing Construction: SBR
Cover Construction: SBR
Application: Rough industrial applications, severe service in mines, quarries and construction jobs. SAE Rating: N/A
Other Ratings: N/A Tube: Black SBR synthetic rubber, ARPM Class C (Limited Oil Resistance) (non-conductive)
Reinforcement: Spiral-plied synthetic fabric Cover: Green SBR synthetic rubber (wrapped impression), ARPM Class C (Limited Oil Resistance)
Temperature Range: -25°F to 180°F (-32°C to 82°C) Fittings: N/A
Branding: Continental ContiTech Plicord® Air 400 psi WP
Green
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Green
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20018818 1/2" 12.7mm 0.88" 22.4mm 400 PSI 2.76 MPa 100ft 0.23 lbs./ft. 0.34 kg/m 54900601601000
20018820 3/4" 19.1mm 1.23" 31.2mm 400 PSI 2.76 MPa 100ft 0.45 lbs./ft. 0.67 kg/m 54900602401000
20018823 1" 25.4mm 1.50" 38.1mm 400 PSI 2.76 MPa 100ft 0.58 lbs./ft. 0.86 kg/m 54900603201000
20018828 1-1/2" 38.1mm 2.04" 51.8mm 400 PSI 2.76 MPa 100ft 0.86 lbs./ft. 1.28 kg/m 54900604801000
20018830 2" 50.8mm 2.55" 64.7mm 400 PSI 2.76 MPa 100ft 1.11 lbs./ft. 1.65 kg/m 54900606401000
20018832 3" 76.2mm 3.70" 94.0mm 400 PSI 2.76 MPa 100ft 2.14 lbs./ft. 3.18 kg/m 54900610701000

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
