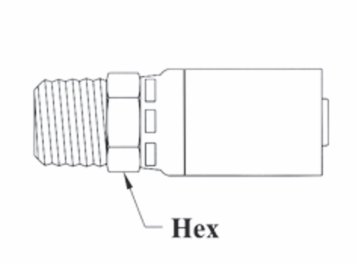

CS01-8X12 Couplamatic VARI-CRIMP Coupling - NPTF - Male Solid - 1/2" Hose ID - 3/4-14 Thread (Old Part Number: 854V)

CS01-8X12 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4-14 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 854V

$5.35

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Solid
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS01-8X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF X 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS01-4X2 1/4" 1/8" 1/8-27 9/16" 400V HY04-02MP 101HY-2-4 04U-102
CS01-4X4 1/4" 1/4" 1/4-18 9/16" 403V HY04-04MP 101HY-4-4 04U-104
CS01-4X6 1/4" 3/8" 3/8-18 11/16" 415V HY04-06MP 101HY-6-4 04U-106
CS01-4X8 1/4" 1/2" 1/2-14 7/8" 439V HY04-08MP 101HY-8-4 04U-108
CS01-6X4 3/8" 1/4" 1/4-18 3/4" 600V HY06-04MP 101HY-4-6 06U-104
CS01-6X6 3/8" 3/8" 3/8-18 3/4" 603V HY06-06MP 101HY-6-6 06U-106
CS01-6X6LN 3/8" 3/8" 3/8-18 LN 3/4" 603VLN - - -
CS01-6X8 3/8" 1/2" 1/2-14 7/8" 615V HY06-08MP 101HY-8-6 06U-108
CS01-8X4 1/2" 1/4" 1/4-18 7/8" 866V HY08-04MP 101HY-4-8 08U-104
CS01-8X6 1/2" 3/8" 3/8-18 7/8" 800V HY08-06MP 101HY-6-8 08U-106
CS01-8X8 1/2" 1/2" 1/2-14 7/8" 803V HY08-08MP 101HY-8-8 08U-108
CS01-8X12 1/2" 3/4" 3/4-14 1-1/8" 854V HY08-12MP 101HY-12-8 08U-112
CS01-10X8 5/8" 1/2" 1/2-14 15/16" 1000V HY10-08MP 101HY-8-10 10U-108
CS01-10X12 5/8" 3/4" 3/4-14 1-1/8" 1003V HY10-12MP 101HY-12-10 10U-112
CS01-12X8 3/4" 1/2" 1/2-14 1-1/8" 1200V HY12-08MP 101HY-8-12 12U-108
CS01-12X12 3/4" 3/4" 3/4-14 1-1/8" 1203V HY12-12MP 101HY-12-12 12U-112
CS01-12X16 3/4" 1" 1-11-1/2 1-3/8" 1254V HY12-16MP 101HY-16-12 12U-116
CS01-16X12 1" 3/4" 3/4-14 1-3/8" 1603V HY16-12MP 101HY-12-16 16U-112
CS01-16X16 1" 1" 1-11-1/2 1-3/8" 1600V HY16-16MP 101HY-16-16 16U-116
CS01-16X16BR* 1" 1" 1-11-1/2 1-3/8" NA - - -
CS01-20X20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 2000V HY20-20MP 101HY-20-20 20U-120

*BR - Brass Stem

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
