CS05-6X6 Couplamatic VARI-CRIMP Coupling - NPSM - Female Swivel - 3/8" Hose ID - 3/8-18 Thread (Old Part Number: 606V)

CS05-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/8-18 Thread Female Swivel NPSM | Straight | Trivalent Zinc Plating | Replaces: 606V

Save $3.11

$7.77

$7.77 - $7.77

$7.77

$4.66

$4.66 - $4.66

$4.66

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPSM - Female Swivel

Specifications for Variant SKU: CS05-6X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPSM, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Vari-Crimp — Universal Crimp

CS05 Vari-Crimp — NPSM Female Swivel, Straight

CS05 is the NPSM Female Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

2

Which sizes are available?

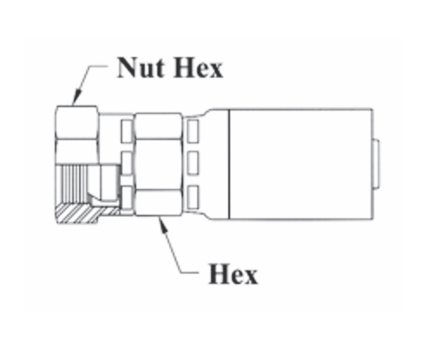

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS05-4X4	1/4"	1/4"	1/4-18	9/16"	11/16"	409V	HY04-04FN	107HY-4-4	04U-054
CS05-6X6	3/8"	3/8"	3/8-18	11/16"	7/8"	606V	HY06-06FN	107HY-6-6	06U-056
CS05-6X8	3/8"	1/2"	1/2-14	3/4"	1"	648V	—	—	06U-058
CS05-8X8	1/2"	1/2"	1/2-14	7/8"	1"	806V	HY08-08FN	107HY-8-8	08U-058
CS05-12X12	3/4"	3/4"	3/4-14	1-1/8"	1-1/4"	1206V	HY12-12FN	107HY-12-12	12U-062
CS05-16X16	1"	1"	1-11-1/2	1-3/8"	1-1/2"	1606V	HY16-16FN	107HY-16-16	16U-066
CS05-20X20	1-1/4"	1-1/4"	1-1/4-11-1/2	1-11/16"	1-7/8"	2008V	HY20-20FN	—	20U-070

i

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
