CS07-12X12 Couplamatic VARI-CRIMP Coupling - SAE 45° - Female Swivel - 3/4" Hose ID - 1-1/16x14 Thread (Old Part Number: 1224V)

CS07-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-1/16x14 Thread SAE 45° Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 1224V

Save $5.60 Save $5.60
$14.00
$14.00 - $14.00
$14.00
$8.40
$8.40 - $8.40
$8.40

Couplamatic Systems Inc.
Vari-Crimp Couplings - SAE 45° - Female Solid
Specifications for Variant SKU: CS07-12X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female SAE 45 Flare, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

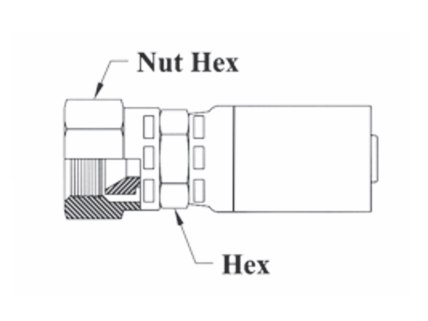

Part Number Hose ID Thread Size Tube OD Nut Hex Hex Size Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS07-4X6 1/4" 5/8x18 3/8" 5/8" 13/16" 442V HY04-06FA 108HY-6-4 -
CS07-6X6 3/8" 5/8x18 3/8" 11/16" 3/4" 633V HY06-06FA 108HY-6-6 06U-406
CS07-12X12 3/4" 1-1/16x14 3/4" 1-1/8" 1-1/4" 1224V HY12-12FA 108HY-12-12 12U-412

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
