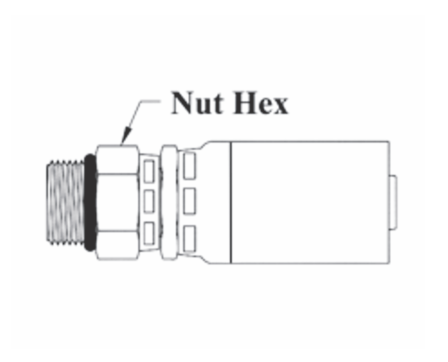

CS12-4X4 Couplamatic VARI-CRIMP Coupling - ORB - Male Swivel - 1/4" Hose ID - 7/16x20 Thread (Old Part Number: 457V)

CS12-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x20 Thread ORB Male Swivel | Straight | Trivalent Zinc Plating | Replaces: 457V

Save $0.81

$7.29

$7.29 - $7.29

$7.29

$6.48

$6.48 - $6.48

$6.48

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel

Quantity

Specifications for Variant SKU: CS12-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male O-Ring Boss, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS12-4X4	1/4"	7/16x20	1/4"	9/16"	5/8"	457V	HY04-04RC	10GHY-4-4	04U-R04
CS12-6X6	3/8"	9/16x18	3/8"	11/16"	3/4"	678V	HY06-06RC	10GHY-6-6	06U-R06
CS12-6X8	3/8"	3/4x16	1/2"	3/4"	7/8"	645V	HY06-08RC	10GHY-8-6	06U-R08
CS12-8X8	1/2"	3/4x16	1/2"	13/16"	7/8"	836V	HY08-08RC	10GHY-8-8	08U-R08
CS12-8X10	1/2"	7/8x14	5/8"	13/16"	1"	839V	HY08-10RC	10GHY-10-8	08U-R10
CS12-12X12	3/4"	1-1/16x12	3/4"	1-1/8"	1-1/4"	1239V	HY12-12RC	10GHY-12-12	-
CS12-16X16	1"	1-5/16x12	1"	1-3/8"	1-1/2"	1639V	-	-	-

- Swivel for installation purposes only. Leakage may occur at low pressure.

-The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
