CS19-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4x18 Thread Male Inverted Flare | 45° Elbow | Trivalent Zinc Plating | Replaces: 8112V

Save $1.00 Save $1.00
Original price $9.96
Original price $9.96 - Original price $9.96
Original price $9.96
Current price $8.96
$8.96 - $8.96
Current price $8.96

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare - 45°

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS19-8X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male Inverted Flare, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

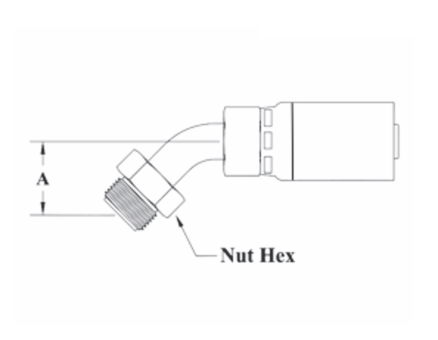

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS19-4X3 1/4" 3/8x24 3/16" 0.69 3/8" 4172V HY04-03MF45T - 04U-B43
CS19-4X4 1/4" 7/16x24 1/4" 1.08 7/16" 4109V HY04-04MF45T 167HY-4-4 04U-B44
CS19-4X5 1/4" 1/2x20 5/16" 1.10 1/2" 4136V HY04-05MF45T 167HY-5-4 04U-B45
CS19-6X4 3/8" 7/16x24 1/4" 0.93 7/16" 6178V HY06-04MF45T - 06U-B44
CS19-6X5 3/8" 1/2x20 5/16" 1.10 1/2" 6112V HY06-05MF45T 167HY-5-6 06U-B45
CS19-6X6 3/8" 5/8x18 3/8" 1.03 5/8" 6139V HY06-06MF45T 167HY-6-6 06U-B46
CS19-6X7 3/8" 11/16x18 7/16" 1.34 11/16" 6196V HY06-07MF45T - 06U-B47
CS19-8X8 1/2" 3/4x18 1/2" 1.13 3/4" 8112V HY08-08MF45T 167HY-8-8 08U-B48
CS19-8X10 1/2" 7/8x18 5/8" 0.92 7/8" 8139V - - -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
