CS20-4X4 Couplamatic VARI-CRIMP Coupling - Male Inverted Flare - 90° - 1/4" Hose ID - 7/16x24 Thread (Old Part Number: 4112V)

CS20-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x24 Thread Male Inverted Flare | 90° Elbow | Trivalent Zinc Plating | Replaces: 4112V

Save $4.90 Save $4.90
$12.25
$12.25 - $12.25
$12.25
$7.35
$7.35 - $7.35
$7.35

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare - 90°
Specifications for Variant SKU: CS20-4X4 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male Inverted Flare, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

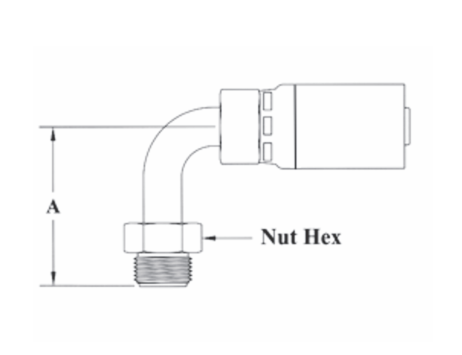

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS20-4X3 1/4" 3/8x24 3/16" 1.06 3/8" 4175V HY04-03MF90T 169HY-3-4 04U-B63
CS20-4X4 1/4" 7/16x24 1/4" 1.23 7/16" 4112V HY04-04MF90T 169HY-4-4 04U-B64
CS20-4X5 1/4" 1/2x20 5/16" 1.38 1/2" 4139V HY04-05MF90T 169HY-5-4 04U-B65
CS20-6X4 3/8" 7/16x24 1/4" 1.36 7/16" 6181V HY06-04MF90T 169HY-4-6 06U-B64
CS20-6X5 3/8" 1/2x20 5/16" 1.38 1/2" 6115V HY06-05MF90T 169HY-5-6 06U-B65
CS20-6X6 3/8" 5/8x18 3/8" 1.63 5/8" 6142V HY06-06MF90T 169HY-6-6 06U-B66
CS20-6X7 3/8" 11/16x18 7/16" 1.97 11/16" 6199V HY06-07MF90T 169HY-7-6 06U-B67
CS20-8X8 1/2" 3/4x18 1/2" 2.20 3/4" 8115V HY08-08MF90T 169HY-8-8 08U-B68

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
