CS24-4X4 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop - 1/4" Hose ID - 7/16x20 Thread (Old Part Number: 4132V)

CS24-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x20 Thread JIC/SAE Dual Seat Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 4132V

Save $5.79 Save $5.79
$14.48
$14.48 - $14.48
$14.48
$8.69
$8.69 - $8.69
$8.69

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Specifications for Variant SKU: CS24-4X4 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Hose Barb, 1/4in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

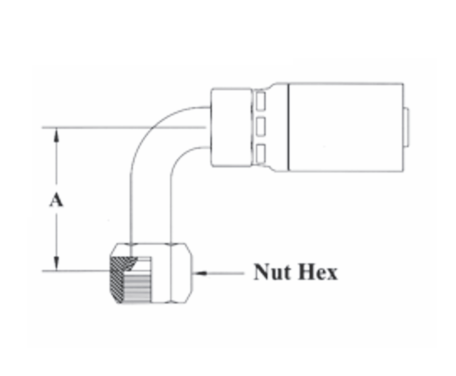

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number
CS24-4X4 1/4" 7/16x20 1/4" 1.26" 9/16" 4132V
CS24-6X6* 3/8" 9/16x18 3/8" 1.50 11/16" 6162V*
CS24-8X8 1/2" 3/4x16 1/2" 1.63 7/8" 8134V
CS24-12X12* 3/4" 1-1/16x12 3/4" 2.28 1-1/4" 12653V*
CS24-16X16* 1" 1-5/16x12 1" 2.79 1-1/2" 16653V*

* JIC Seat & Thread Only
