CS24-8X8 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop - 1/2" Hose ID - 3/4x16 Thread (Old Part Number: 8134V)

CS24-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4x16 Thread JIC/SAE Dual Seat Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 8134V

Save $1.08 Save $1.08
$10.78
$10.78 - $10.78
$10.78
$9.70
$9.70 - $9.70
$9.70

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS24-8X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

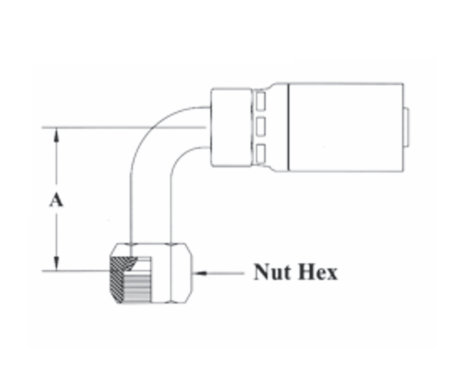

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number
CS24-4X4 1/4" 7/16x20 1/4" 1.26" 9/16" 4132V
CS24-6X6* 3/8" 9/16x18 3/8" 1.50 11/16" 6162V*
CS24-8X8 1/2" 3/4x16 1/2" 1.63 7/8" 8134V
CS24-12X12* 3/4" 1-1/16x12 3/4" 2.28 1-1/4" 12653V*
CS24-16X16* 1" 1-5/16x12 1" 2.79 1-1/2" 16653V*

* JIC Seat & Thread Only
