CS28-12X12 Couplamatic VARI-CRIMP Coupling - Tube Repair Couplings - 3/4" Hose ID - 1-1/16x12 Thread (Old Part Number: 12100V)

CS28-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-1/16x12 Thread Tube Repair Couplings | Straight | Trivalent Zinc Plating | Replaces: 12100V

Save $8.83 Save $8.83
$22.07
$22.07 - $22.07
$22.07
$13.24
$13.24 - $13.24
$13.24

Couplamatic Systems Inc.
Vari-Crimp Couplings - Tube Repair Couplings
Specifications for Variant SKU: CS28-12X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Tube Compression, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS28 Vari-Crimp — Straight

CS28 is the Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

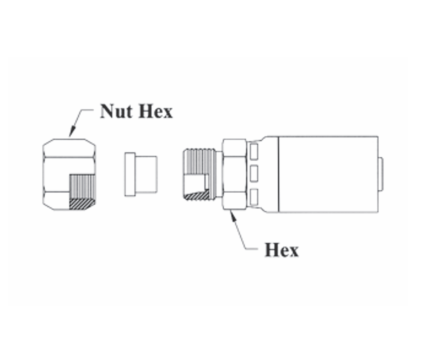

Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS28-4X4 1/4" 7/16x20 1/4" 9/16" 9/16" 4100V HY04-04MV 111HY-4-4 04U-754
CS28-4X5 1/4" 1/2x20 5/16" 5/8" 5/8" 4103V HY04-05MV — 04U-755
CS28-6X5 3/8" 1/2x20 5/16" 11/16" 5/8" 6103V HY06-05MV 111HY-5-6 06U-755
CS28-6X6 3/8" 9/16x18 3/8" 11/16" 11/16" 6106V HY06-06MV 111HY-6-6 06U-756
CS28-6X8 3/8" 3/4x16 1/2" 3/4" 7/8" 6800V HY06-08MV 111HY-8-6 —
CS28-8X8 1/2" 3/4x16 1/2" 7/8" 7/8" 8103V HY08-08MV 111HY-8-8 08U-758
CS28-8X10 1/2" 7/8x14 5/8" 15/16" 1" 8106V HY08-10MV 111HY-10-8 08U-760
CS28-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 12100V HY12-12MV 111HY-12-12 12U-762
CS28-16X16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 16100V HY16-16MV 111HY-16-16 16U-766
3

Which nuts and sleeves fit this coupling?
Nuts and Sleeves
Tube Size Nut Part Number Sleeve Part Number
1/4" 718x4 719x4
5/16" 718x5 719x5
3/8" 718x6 719x6
1/2" 718x8 719x8
5/8" 718x10 719x10
3/4" 718x12 719x12
1" 718x16 719x16
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
