CS28-4X5 Couplamatic VARI-CRIMP Coupling - Tube Repair Couplings - 1/4" Hose ID - 1/2x20 Thread (Old Part Number: 4103V)

CS28-4X5 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/2x20 Thread Tube Repair Couplings | Straight | Trivalent Zinc Plating | Replaces: 4103V

Save $0.75 Save $0.75
$6.73
$6.73 - $6.73
$6.73
$5.98
$5.98 - $5.98
$5.98

Couplamatic Systems Inc.
Vari-Crimp Couplings - Tube Repair Couplings
Specifications for Variant SKU: CS28-4X5 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Tube Compression, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

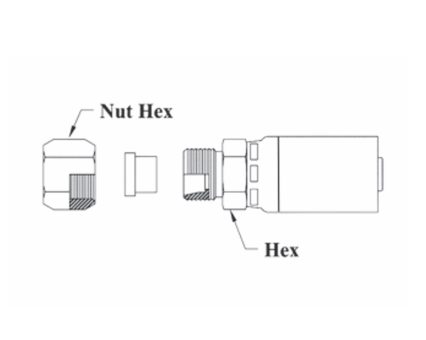

Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS28-4X4 1/4" 7/16x20 1/4" 9/16" 9/16" 4100V HY04-04MV 111HY-4-4 04U-754
CS28-4X5 1/4" 1/2x20 5/16" 5/8" 5/8" 4103V HY04-05MV - 04U-755
CS28-6X5 3/8" 1/2x20 5/16" 11/16" 5/8" 6103V HY06-05MV 111HY-5-6 06U-755
CS28-6X6 3/8" 9/16x18 3/8" 11/16" 11/16" 6106V HY06-06MV 111HY-6-6 06U-756
CS28-6X8 3/8" 3/4x16 1/2" 3/4" 7/8" 6800V HY06-08MV 111HY-8-6 -
CS28-8X8 1/2" 3/4x16 1/2" 7/8" 7/8" 8103V HY08-08MV 111HY-8-8 08U-758
CS28-8X10 1/2" 7/8x14 5/8" 15/16" 1" 8106V HY08-10MV 111HY-10-8 08U-760
CS28-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 12100V HY12-12MV 111HY-12-12 12U-762
CS28-16X16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 16100V HY16-16MV 111HY-16-16 16U-766
Nuts and Sleeves
Tube Size Nut Part Number Sleeve Part Number
1/4" 718x4 719x4
5/16" 718x5 719x5
3/8" 718x6 719x6
1/2" 718x8 719x8
5/8" 718x10 719x10
3/4" 718x12 719x12
1" 718x16 719x16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
