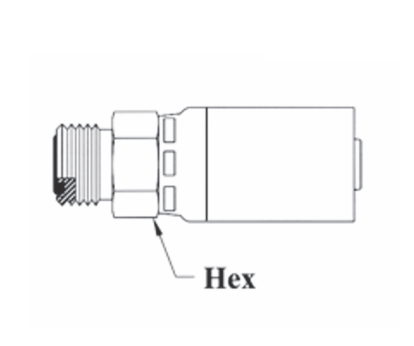

CS29-16X16 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - Male Solid - 1" Hose ID - 1-7/16x12Thread (Old Part Number: 16E76V)

CS29-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 16E76V

Save $2.59

$25.94

$25.94 - $25.94

$25.94

$23.35

$23.35 - $23.35

$23.35

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - Male Solid

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS29-16X16 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. Couplings are capped with O-ring included.

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS29-4X4	1/4"	9/16x18	1/4"	5/8"	4E64V	HY04-04OM	1J0HY-4-4	04U-E64
CS29-6X6	3/8"	11/16x16	3/8"	3/4"	6E66V	HY06-06OM	1J0HY-6-6	06U-E66
CS29-6X8	3/8"	13/16x16	1/2"	7/8"	6E68V	-	-	06U-E68
CS29-8X8	1/2"	13/16x16	1/2"	7/8"	8E68V	HY08-08OM	1J0HY-8-8	08U-E68
CS29-8X10	1/2"	1x14	5/8"	1-1/16"	8E70V	HY08-10OM	1J0HY-10-8	08U-E70
CS29-8X12	1/2"	1-3/16x12	3/4"	1-1/4"	8E72V	HY08-12OM	1J0HY-12-8	08U-E72
CS29-10X10	5/8"	1x14	5/8"	1-1/16"	10E70V	-	-	10U-E70
CS29-10X12	5/8"	1-3/16x12	3/4"	1-1/4"	10E72V	-	-	10U-E72
CS29-12X12	3/4"	1-3/16x12	3/4"	1-1/4"	12E72V	-	-	12U-E72
CS29-16X16	1"	1-7/16x12	1"	1-1/2"	16E76V	HY16-16OM	-	16U-E76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
