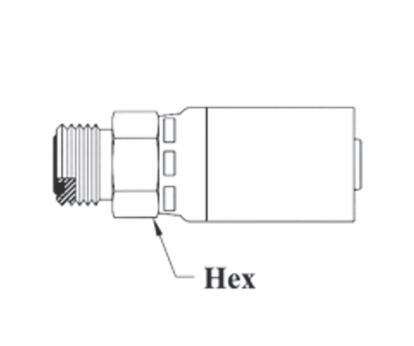

CS29-8X12 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - Male Solid - 1/2" Hose ID - 1-3/16x12 Thread (Old Part Number: 8E72V)

CS29-8X12 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 8E72V

Save $17.02 Save $17.02
$42.55
$42.55 - $42.55
$42.55
$25.53
$25.53 - $25.53
$25.53

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - Male Solid
Specifications for Variant SKU: CS29-8X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Couplings are capped with O-ring included.
Part Number Hose ID Thread Size Tube OD Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS29-4X4 1/4" 9/16x18 1/4" 5/8" 4E64V HY04-04OM 1J0HY-4-4 04U-E64
CS29-6X6 3/8" 11/16x16 3/8" 3/4" 6E66V HY06-06OM 1J0HY-6-6 06U-E66
CS29-6X8 3/8" 13/16x16 1/2" 7/8" 6E68V - - 06U-E68
CS29-8X8 1/2" 13/16x16 1/2" 7/8" 8E68V HY08-08OM 1J0HY-8-8 08U-E68
CS29-8X10 1/2" 1x14 5/8" 1-1/16" 8E70V HY08-10OM 1J0HY-10-8 08U-E70
CS29-8X12 1/2" 1-3/16x12 3/4" 1-1/4" 8E72V HY08-12OM 1J0HY-12-8 08U-E72
CS29-10X10 5/8" 1x14 5/8" 1-1/16" 10E70V - - 10U-E70
CS29-10X12 5/8" 1-3/16x12 3/4" 1-1/4" 10E72V - - 10U-E72
CS29-12X12 3/4" 1-3/16x12 3/4" 1-1/4" 12E72V - - 12U-E72
CS29-16X16 1" 1-7/16x12 1" 1-1/2" 16E76V HY16-16OM - 16U-E76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
