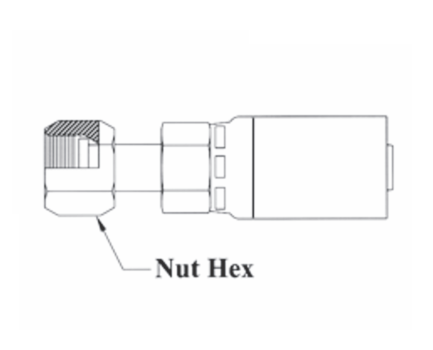

CS30-16X20 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1" Hose ID - 1-11/16x12 Thread (Old Part Number: 16S80V)

CS30-16X20 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-11/16x12 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 16S80V

$32.12

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - Female Swivel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS30-16X20 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS30-4X4 1/4" 9/16x18 1/4" 11/16" 4S64V HY04-04OFT 1JSHY-4-4 04U-S64
CS30-4X6 1/4" 11/16x16 3/8" 13/16" 4S66V HY04-06OFT 1JSHY-6-4 04U-S66
CS30-4X8 1/4" 13/16x16 1/2" 15/16" 4S68V HY04-08OFT 1JSHY-8-4 04U-S68
CS30-6X4 3/8" 9/16x18 1/4" 11/16" 6S64V HY06-04OFT - 06U-S64
CS29-6X6 3/8" 11/16x16 3/8" 13/16" 6S66V HY06-06OFT 1JSHY-6-6 06U-S66
CS30-6X8 3/8" 13/16x16 1/2" 15/16" 6S68V HY06-08OFT 1JSHY-8-6 06U-S68
CS30-8X6 1/2" 11/16x16 3/8" 13/16" 8S66V HY08-06OFT 1JSHY-6-8 08U-S66
CS30-8X8 1/2" 13/16x16 1/2" 15/16" 8S68V HY08-08OFT 1JSHY-8-8 08U-S68
CS30-8X10 1/2" 1x14 5/8" 1-1/8" 8S70V HY08-10OFT 1JSHY-10-8 08U-S70
CS30-8X12 1/2" 1-3/16x12 3/4" 1-3/8" 8S72V HY08-12OFT 1JSHY-12-8 08U-S72
CS30-10X10 5/8" 1x14 5/8" 1-1/8" 10S70V HY10-10OFT 1JSHY-10-10 10U-S70
CS30-10X12 5/8" 1-3/16x12 3/4" 1-3/8" 10S72V HY10-12OFT 1JSHY-12-10 10U-S72
CS30-12X10 3/4" 1x14 5/8" 1-1/8" 12S70V HY12-10OFT 1JSHY-10-12 12U-S70
CS30-12X12 3/4" 1-3/16x12 3/4" 1-3/8" 12S72V HY12-12OFT 1JSHY-12-12 12U-S72
CS30-12X16 3/4" 1-7/16x12 1" 1-5/8" 12S76V HY12-16OFT 1JSHY-16-12 12U-S76
CS30-16X12 1" 1-3/16x12 3/4" 1-3/8" 16S72V - - -
CS30-16X16 1" 1-7/16x12 1" 1-5/8" 16S76V HY16-16OFT 1JSHY-16-16 16U-S76
CS30-16X20 1" 1-11/16x12 1-1/4" 1-7/8" 16S80V - - -
CS30-20X20 1-1/4" 1-11/16x12 1-1/4" 1-7/8" 20S80V HY20-20OFT 1JSHY-20-20 20U-S80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
