CS31-12X12 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 45° Female Swivel - 3/4" Hose ID - 1-3/16x12 Thread (Old Part Number: 12L72V)

CS31-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 12L72V | Pack of 5

Save $10.94

$98.46

$98.46 - $98.46

$98.46

$87.52

$87.52 - $87.52

$87.52

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 45° Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS31-12X12 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

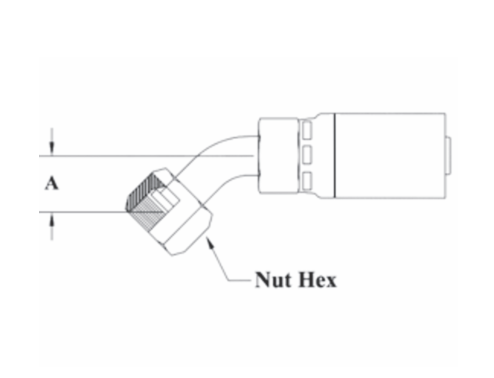

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS31-4X4	1/4"	9/16x18	1/4"	0.41	11/16"	4L64V	HY04-04OF45T	1J7HY-4-4	04U-L64
CS31-4X6	1/4"	11/16x16	3/8"	0.43	13/16"	4L66V	HY04-06OF45T	1J7HY-6-4	04U-L66
CS31-6X6	3/8"	11/16x16	3/8"	0.43	13/16"	6L66V	HY06-06OF45T	1J7HY-6-6	06U-L66
CS31-6X8	3/8"	13/16x16	1/2"	0.60	15/16"	6L68V	HY06-08OF45T	1J7HY-8-6	06U-L68
CS31-8X6	1/2"	11/16x16	3/8"	0.43	13/16"	8L66V	HY08-06OF45T	1J7HY-6-8	08U-L66
CS31-8X8	1/2"	13/16x16	1/2"	0.59	15/16"	8L68V	HY08-08OF45T	1J7HY-8-8	08U-L68
CS31-8X10	1/2"	1x14	5/8"	0.68	1-1/8"	8L70V	HY08-10OF45T	1J7HY-10-8	08U-L70
CS31-10X10	5/8"	1x14	5/8"	0.68	1-1/8"	10L70V	HY10-10OF45T	1J7HY-10-10	10U-L70
CS31-10X12	5/8"	1-3/16x12	3/4"	0.83	1-3/8"	10L72V	HY10-12OF45T	1J7HY-12-10	10U-L72
CS31-12X10	3/4"	1x14	5/8"	0.68	1-1/8"	12L70V	HY12-10OF45T	1J7HY-10-12	12U-L70
CS31-12X12	3/4"	1-3/16x12	3/4"	0.83	1-3/8"	12L72V	HY12-12OF45T	1J7HY-12-12	12U-L72
CS31-12X16	3/4"	1-7/16x12	1"	1.15	1-5/8"	12L76V	-	-	12U-L76
CS31-16X16	1"	1-7/16x12	1"	1.15	1-5/8"	16L76V	HY16-16OF45T	1J7HY-16-16	16U-L76
CS31-16X20	1"	1-11/16x12	1-1/4"	1.10	1-7/8"	16L80V	-	-	-
CS31-20X20	1-1/4"	1-11/16x12	1-1/4"	1.07	1-7/8"	20L80V	HY20-20OF45T	-	20U-L80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
