CS34-16X20 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop - 1" Hose ID - 1-11/16x12 Thread (Old Part Number: 16J50V)

CS34-16X20 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-11/16x12 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 16J50V

Save $5.87 Save $5.87
$58.66
$58.66 - $58.66
$58.66
$52.79
$52.79 - $52.79
$52.79

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS34-16X20 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

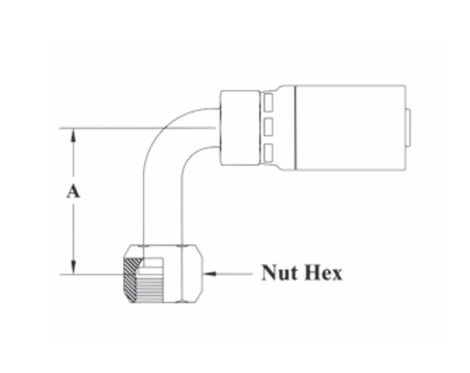

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Weatherhead U
CS34-4X4 1/4" 9/16x18 1/4" 1.26 11/16" 4J34V 04U-J34
CS34-4X6 1/4" 11/16x16 3/8" 1.51 13/16" 4J36V -
CS34-6X6 3/8" 11/16x16 3/8" 1.51 13/16" 6J36V 06U-J36
CS32-6X8 3/8" 13/16x16 1/2" 1.62 15/16" 6J38V 06U-J38
CS34-8X6 1/2" 11/16x16 3/8" 1.51 13/16" 8J36V 08U-J36
CS34-8X8 1/2" 13/16x16 1/2" 1.62 15/16" 8J38V 08U-J38
CS34-8X12 1/2" 1-3/16x12 3/4" 2.28 1-3/8" 8J42V -
CS34-10X10 5/8" 1x14 5/8" 1.85 1-1/8" 10J40V -
CS34-12X10 3/4" 1x14 5/8" 1.85 1-1/8" 12J40V 12U-J40
CS34-12X12 3/4" 1-3/16x12 3/4" 2.28 1-3/8" 12J42V 12U-J42
CS34-16X16 1" 1-7/16x12 1" 2.78 1-5/8" 16J46V 16U-J46
CS34-16X20 1" 1-11/16x12 1-1/4" 3.07 1-7/8" 16J50V -
CS34-20X20 1-1/4" 1-11/16x12 1-1/4" 3.09 1-7/8" 20J50V 20U-J50

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
