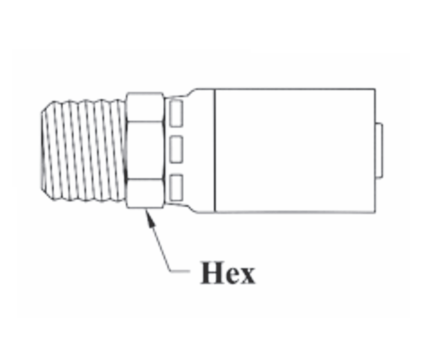

CS35-12X12 Couplamatic VARI-CRIMP Coupling - BSPT - British Standard Tapered - Male Pipe Solid - 3/4" Hose ID - R-3/4-14 Thread - 3/4" BSPT (Old Part Number: 12T62V)

CS35-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x R-3/4-14 Thread Male Pipe Solid | 3/4" BSPT | Straight | Trivalent Zinc Plating | Replaces: 12T62V

Save $5.75

$14.38

$14.38 - $14.38

$14.38

$8.63

$8.63 - $8.63

$8.63

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPT - British Standard Tapered - Male Pipe Solid

Specifications for Variant SKU: CS35-12X12 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male BSPT, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. R. as part of thread size is ISO designation for tapered thread

Part Number	Hose ID	BSPT Size	Thread Size	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPT Size	Thread Size	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS35-4X4	1/4"	1/4"	R-1/4-19	5/8"	4T54V	HY04-04BT	1UTHY-4-4	04U-154
CS35-6X6	3/8"	3/8"	R-3/8-19	3/4"	6T56V	HY06-06BT	1UTHY-6-6	06U-156
CS35-8X8	1/2"	1/2"	R-1/2-14	7/8"	8T58V	HY08-08BT	1UTHY-8-8	08U-158
CS21-12X12	3/4"	3/4"	R-3/4-14	1-1/8"	12T62V	HY12-12BT	-	12U-162

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
