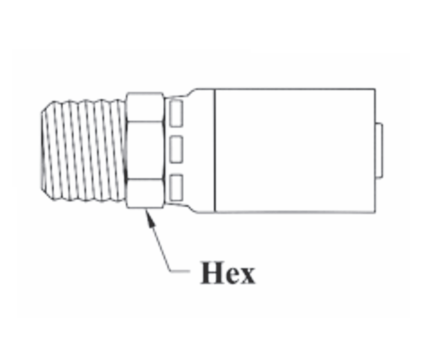

CS35-4X4 Couplamatic VARI-CRIMP Coupling - BSPT - British Standard Tapered - Male Pipe Solid - 1/4" Hose ID - R-1/4-19 Thread - 1/4" BSPT (Old Part Number: 4T54V)

CS35-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x R-1/4-19 Thread Male Pipe Solid | 1/4" BSPT | Straight | Trivalent Zinc Plating | Replaces: 4T54V

Save $2.67

$6.68

$6.68 - $6.68

$6.68

$4.01

$4.01 - $4.01

$4.01

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPT - British Standard Tapered - Male Pipe Solid

Specifications for Variant SKU: CS35-4X4 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male BSPT, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Vari-Crimp — Universal Crimp

CS35 Vari-Crimp — BSPT, Male Pipe Solid, Straight

CS35 is the BSPT, Male Pipe Solid, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
R. as part of thread size is ISO designation for tapered thread
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

2

Which sizes are available?

Part Number	Hose ID	BSPT Size	Thread Size	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPT Size	Thread Size	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS35-4X4	1/4"	1/4"	R-1/4-19	5/8"	4T54V	HY04-04BT	1UTHY-4-4	04U-154
CS35-6X6	3/8"	3/8"	R-3/8-19	3/4"	6T56V	HY06-06BT	1UTHY-6-6	06U-156
CS35-8X8	1/2"	1/2"	R-1/2-14	7/8"	8T58V	HY08-08BT	1UTHY-8-8	08U-158
CS35-12X12	3/4"	3/4"	R-3/4-14	1-1/8"	12T62V	HY12-12BT	—	12U-162

i

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
