CS40-12X12 Couplamatic VARI-CRIMP Coupling - JIS 30° Flare Parallel Pipe - Female Swivel - 3/4" Hose ID - G-3/4-14 Thread (Old Part Number: 12L12V)

CS40-12X12 by Couplamatic | VARI-CRIMP Coupling | JIS 30° Flare Parallel Pipe | 3/4" Hose ID x G-3/4-14 Thread Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 12L12V

Save $10.43

$26.07

$26.07 - $26.07

$26.07

$15.64

$15.64 - $15.64

$15.64

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIS 30° Flare Parallel Pipe - Female Swivel

Specifications for Variant SKU: CS40-12X12 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female JIS, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. G. as part of thread size is ISO designation for parallel thread.

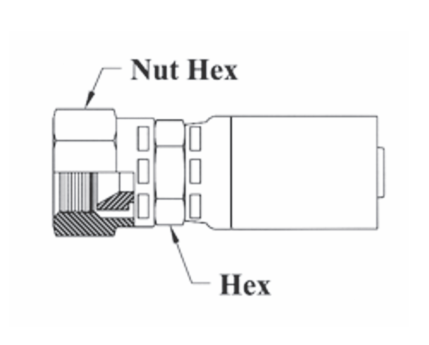

Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	Hex Size	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS40-4X4	1/4"	1/4"	G-1/4-19	9/16"	3/4"	4L04V	HY04-04MJPF	-	04U-04L
CS40-4X6	1/4"	3/8"	G-3/8-19	11/16"	7/8"	4L06V	-	-	-
CS40-6X6	3/8"	3/8"	G-3/8-19	11/16"	7/8"	6L06V	HY06-06MJPF	-	06U-06L
CS40-8X8	1/2"	1/2"	G-1/2-14	7/8"	1-1/16"	8L08V	HY08-08MJPF	-	08U-08L
CS40-12X12	3/4"	3/4"	G-3/4-14	1-1/8"	1-1/4"	12L12V	HY12-12MJPF	1FUHY-12-12-SM	12U-12L
CS40-16X16	1"	1"	G-1-11	1-3/8"	1-1/2"	16L16V	HY16-16MJFP	-	16U-16L

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
