CS45-4X10 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Female Swivel 90° Bend - 1/4" Hose ID - M18x1.5 Thread (Old Part Number: 4H60V)

CS45-4X10 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x M18x1.5 Thread Din Heavy 24° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 4H60V

Save $9.47 Save $9.47
$23.67
$23.67 - $23.67
$23.67
$14.20
$14.20 - $14.20
$14.20

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel 90° Bend
Specifications for Variant SKU: CS45-4X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: S10 Female DIN, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS45 Vari-Crimp — DIN Heavy 24° Seat, Female Swivel, 90° Elbow

CS45 is the DIN Heavy 24° Seat, Female Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Includes O-Ring
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

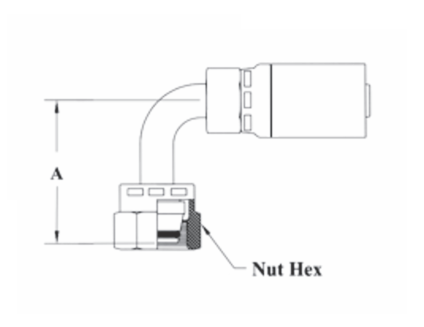

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS45-4X10 1/4" 10mm M18x1.5 1.50" 7/8" 4H60V — — —
CS45-6X12 3/8" 12mm M20x1.5 1.95" 1" 6H62V — — 06U-62E
CS45-6X14 3/8" 14mm M22x1.5 2.07" 1-1/16" 6H64V — — 06U-64E
CS45-8X16 1/2" 16mm M24x1.5 2.05" 1-1/8" 8H66V HY08-16RO24A90T 1C8HY-16-8 08U-66E
CS45-10X20 5/8" 20mm M30x2.0 2.38" 1-1/2" 10H70V — — 10U-70E
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
