CS50-8X8 Couplamatic VARI-CRIMP Coupling - Code 61 Split Flange - 45° Bend - 1/2" Hose ID - 1/2" Flange Size (Old Part Number: 8G41V)

CS50-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1/2" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating | Replaces: 8G41V

Save $12.92 Save $12.92
$32.30
$32.30 - $32.30
$32.30
$19.38
$19.38 - $19.38
$19.38

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange - 45° Bend
Specifications for Variant SKU: CS50-8X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Code 61 Flange, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

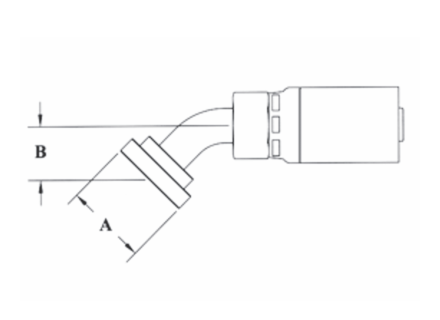

Part Number Hose ID Flange Size A-Dia. Inches B-Drop Inches PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY
CS50-8X8 1/2" 1/2" 1.19" 0.78" 8G41V HY08-08PA45 117HY-8-8 08U-G41
CS50-8X12 1/2" 3/4" 1.50" 0.82" 8G42V - - -
CS50-12X12 3/4" 3/4" 1.50" 1.00" 12G42V HY12-12PA45 117HY-12-12 12U-G42
CS50-12X16 3/4" 1" 1.75" 1.00" 12G46V - - 12U-G46
CS50-16X16 1" 1" 1.75" 1.12" 16G46V HY16-16PA45 - 16U-G46
CS50-16X20 1" 1-1/4" 2.00" 1.12" 16G50V - - 16U-G50
CS50-20X20 1-1/4" 1-1/4" 2.00 1.12" 20G50V - - 20U-G50

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
