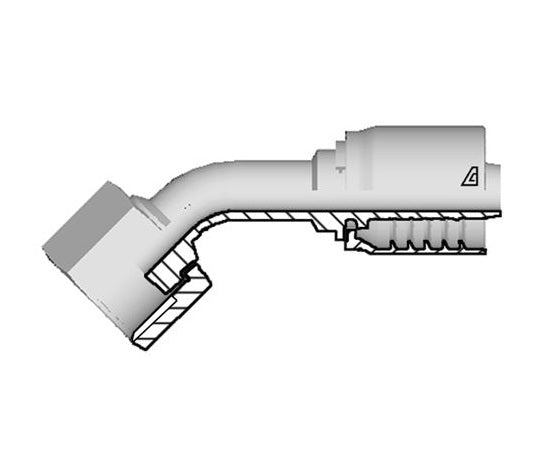

D-0608-FO45 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -08 Female O-Ring Face Seal | Steel

Save $8.72

$30.52

$30.52 - $30.52

$30.52

$21.80

$21.80 - $21.80

$21.80

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female O-Ring Face Seal

Specifications for Variant SKU: D-0608-FO45 Kuriyama
Brand:	Alfagomma
Series:	D Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, 1/2in Female O-Ring Face Seal
Material(s):	Steel
Compatible with the following Series:	E4K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| ABT3K Series \| TR1HT Series \| TR2HT Series

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
D-0606-FO45	06	3/8"	9.5mm	06	11/16-16	47.4mm	12.0mm	22mm	0.25 lbs
D-0608-FO45	06	3/8"	9.5mm	08	13/16-16	51.2mm	15.0mm	24mm	0.30 lbs
D-0808-FO45	08	1/2"	12.7mm	08	13/16-16	47.1mm	16.0mm	24mm	0.43 lbs
D-0810-FO45	08	1/2"	12.7mm	10	1-14	50.4mm	16.5mm	30mm	0.43 lbs
D-1010-FO45	10	5/8"	15.9mm	10	1-14	57.7mm	17.0mm	30mm	0.51 lbs
D-1012-FO45	10	5/8"	15.9mm	12	1-3/16-12	63.1mm	21.0mm	36mm	0.75 lbs
D-1212-FO45	12	3/4"	19.0mm	12	1-3/16-12	63.5mm	21.0mm	36mm	0.83 lbs
D-1216-FO45	12	3/4"	19.0mm	16	1-7/16-12	70.7mm	24.0mm	41mm	1.25 lbs
D-1616-FO45	16	1"	25.4mm	16	1-7/16-12	82.4mm	26.0mm	41mm	1.34 lbs
D-2020-FO45	20	1-1/4"	31.8mm	20	1-11/16-12	97.4mm	26.0mm	50mm	1.75 lbs
D-2424-FO45	24	1-1/2"	38.1mm	24	2-12	104.4mm	28.0mm	60mm	2.56 lbs
