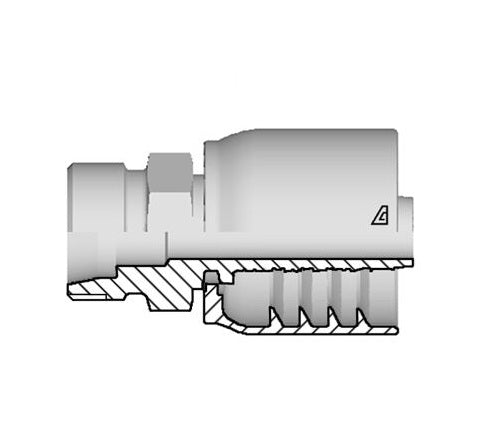

D-1642-MMSH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | -16 Hose ID x M42 Male Metric 24° Seat | Steel

D-1642-MMSH Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | -16 Hose ID x M42 Male Metric 24° Seat | Steel

Save $16.05 Save $16.05
$56.17
$56.17 - $56.17
$56.17
$40.12
$40.12 - $40.12
$40.12

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3861 Heavy | Hose Barb x Male Metric 24° Seat
Specifications for Variant SKU: D-1642-MMSH Kuriyama
Brand: Alfagomma
Series: D Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3861
Compatible with the following Series: E4K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   ABT3K Series  |   TR1HT Series  |   TR2HT Series
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) lbs/each
D-0620-MMSH 06 3/8" 9.5mm 20 M20x1.5 12mm 25.3mm 22mm 0.22 lbs
D-0622-MMSH 06 3/8" 9.5mm 22 M22x1.5 14mm 27.3mm 22mm 0.23 lbs
D-0824-MMSH 08 1/2" 12.7mm 24 M24x1.5 16mm 29.1mm 24mm 0.29 lbs
D-1030-MMSH 10 5/8" 15.9mm 30 M30x2 20mm 33.1mm 32mm 0.44 lbs
D-1236-MMSH 12 3/4" 19.0mm 36 M36x2 28mm 37.6mm 36mm 0.65 lbs
D-1642-MMSH 16 1" 25.4mm 42 M42x2 30mm 42.4mm 46mm 1.19 lbs
D-2052-MMSH 20 1-1/4" 31.8mm 52 M52x2 38mm 48.0mm 55mm 1.65 lbs
