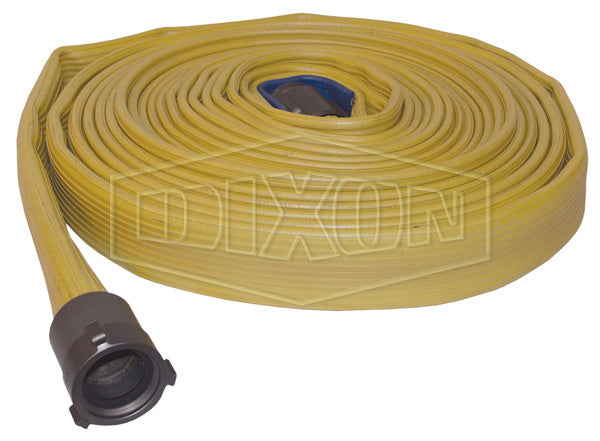

D815Y100RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 1-1/2" Hose Size - 100ft Length

D815Y100RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 1-1/2" Hose Size - 100ft Length

Save $55.22 Save $55.22
$497.00
$497.00 - $497.00
$497.00
$441.78
$441.78 - $441.78
$441.78

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Yellow Color Impregnated - Coupled
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: D815Y100RAF Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 1.5in
Tubing Construction: Synthetic Rubber
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Female NST, 1-1/2in Male NST
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: black, synthetic rubber liner.
  • Proof pressure: 800 PSI at 70°F (21°C)
  • Service test pressure: 400 PSI at 70°F (21°C)
  • Working pressure: 360 PSI at 70°F (21°C)
Part Number Hose Size Thread Size Length Weight
(Lbs.)
D815Y50RAF 1-1/2" 1-1/2" NST(NH) 50 ft 13.0000
D815Y100RAF 1-1/2" 1-1/2" NST(NH) 100 ft 30.0000
D815Y50RAS 1-1/2" 1-1/2" NPSH 50 ft 14.3500
D815Y100RAS 1-1/2" 1-1/2" NPSH 100 ft 30.0000
D817Y50RAF 1-3/4" 1-1/2" NST(NH) 50 ft 18.9200
D825Y50RAF 2-1/2" 2-1/2" NST(NH) 50 ft 30.0000
D825Y100RAF 2-1/2" 2-1/2" NST(NH) 100 ft 70.0000
D8325Y50RAF 3" 2-1/2" NST(NH) 50 ft 37.4000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
