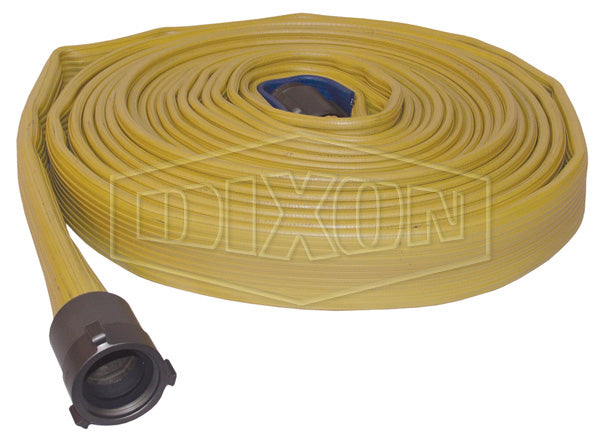

D815Y100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NPSH Thread - 1-1/2" Hose Size - 100ft Length

Name: D815Y100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NPSH Thread - 1-1/2" Hose Size - 100ft Length
Brand: Dixon
SKU: D815Y100RAS Dixon
Price: 509.93 USD
Availability: InStock

Save $63.76

$573.69

$573.69 - $573.69

$573.69

$509.93

$509.93 - $509.93

$509.93

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Yellow Color Impregnated - Coupled

Quantity

Specifications for Variant SKU: D815Y100RAS Dixon
Series:	Fire Hose
Hose Color(s):	Yellow
Internal Diameter:	1.5in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Polyester Textile Braid
Ends Configuration:	1-1/2in Female NPSH, 1-1/2in Male NPSH

Features:
Outer construction: double jacket, all polyester. Tube construction: black, synthetic rubber liner. Proof pressure: 800 PSI at 70°F (21°C) Service test pressure: 400 PSI at 70°F (21°C) Working pressure: 360 PSI at 70°F (21°C)

Part Number	Hose Size	Thread Size	Length	Weight (Lbs.)
D815Y50RAF	1-1/2"	1-1/2" NST(NH)	50 ft	13.0000
D815Y100RAF	1-1/2"	1-1/2" NST(NH)	100 ft	30.0000
D815Y50RAS	1-1/2"	1-1/2" NPSH	50 ft	14.3500
D815Y100RAS	1-1/2"	1-1/2" NPSH	100 ft	30.0000
D817Y50RAF	1-3/4"	1-1/2" NST(NH)	50 ft	18.9200
D825Y50RAF	2-1/2"	2-1/2" NST(NH)	50 ft	30.0000
D825Y100RAF	2-1/2"	2-1/2" NST(NH)	100 ft	70.0000
D8325Y50RAF	3"	2-1/2" NST(NH)	50 ft	37.4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
