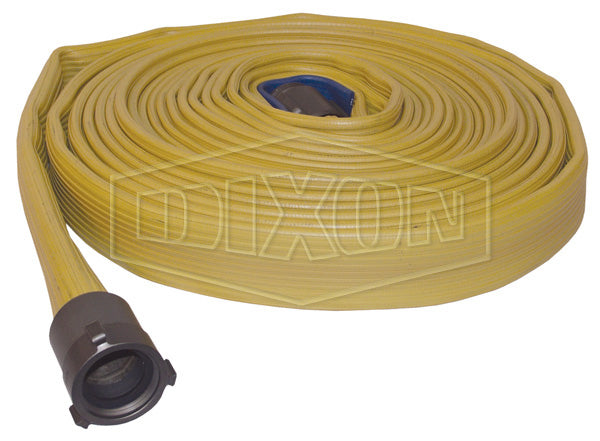

D825Y100RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 2-1/2" Hose Size - 100ft Length

Name: D825Y100RAF Dixon 800# Double Jacket All Polyester Fire Hose - Yellow Impregnated - Coupled - Female x Male NST(NH) Thread - 2-1/2" Hose Size - 100ft Length
Brand: Dixon
SKU: D825Y100RAF Dixon
Price: 914.45 USD
Availability: InStock

Save $114.31

$1,028.76

$1,028.76 - $1,028.76

$1,028.76

$914.45

$914.45 - $914.45

$914.45

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Yellow Color Impregnated - Coupled

Quantity

Specifications for Variant SKU: D825Y100RAF Dixon
Series:	Fire Hose
Hose Color(s):	Yellow
Internal Diameter:	2.5in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Polyester Textile Braid
Ends Configuration:	2-1/2in Female NST, 2-1/2in Male NST

Features:
Outer construction: double jacket, all polyester. Tube construction: black, synthetic rubber liner. Proof pressure: 800 PSI at 70°F (21°C) Service test pressure: 400 PSI at 70°F (21°C) Working pressure: 360 PSI at 70°F (21°C)

Part Number	Hose Size	Thread Size	Length	Weight (Lbs.)
D815Y50RAF	1-1/2"	1-1/2" NST(NH)	50 ft	13.0000
D815Y100RAF	1-1/2"	1-1/2" NST(NH)	100 ft	30.0000
D815Y50RAS	1-1/2"	1-1/2" NPSH	50 ft	14.3500
D815Y100RAS	1-1/2"	1-1/2" NPSH	100 ft	30.0000
D817Y50RAF	1-3/4"	1-1/2" NST(NH)	50 ft	18.9200
D825Y50RAF	2-1/2"	2-1/2" NST(NH)	50 ft	30.0000
D825Y100RAF	2-1/2"	2-1/2" NST(NH)	100 ft	70.0000
D8325Y50RAF	3"	2-1/2" NST(NH)	50 ft	37.4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
