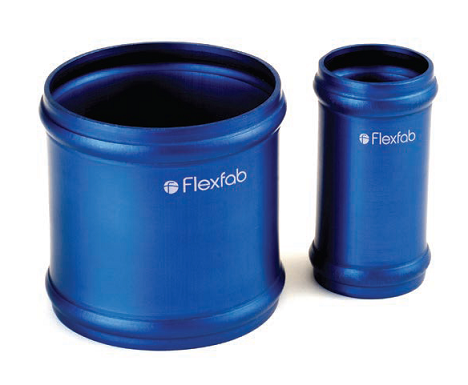

DEA-36519-2500 FlexFab Series 36519 Beaded Connector - 2.50" OD - Blue - 3"

DEA-36519-2500 by FlexFab | Series 36519 | Beaded Connector | 2.50" OD | Blue | 3" Overall Length

Save $17.89

$62.62

$62.62 - $62.62

$62.62

$44.73

$44.73 - $44.73

$44.73

Flexfab Industrial Hose - Series 36519 - Beaded Connectors

Specifications for Variant SKU: DEA-36519-2500 Flexfab
Series:	Series 36519
Shape (Orientation):	Straight
Material(s):	Anodized Aluminum

Overview:
Anodized Aluminum Blue Connectors
Specifications:
Bead height per AS5131 specification Meets anodized aluminum specification MIL-A8625
Applications:
For coolant, charge air connector, or marine applications Anodized aluminum resists salt water damage

Part Number	Outside Diameter	Bead Height(AS5131)	Overall LengthInches	WeightLBS
DEA-36519-0625	0.63"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-0750	0.75"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-1000	1.00"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-1250	1.25"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-1500	1.50"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-1750	1.75"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-2000	2.00"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-2250	2.25"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-2500	2.50"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-2750	2.75"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-3000	3.00"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-3500	3.50"	.047" - .087"	3.00"	0.50 lbs
DEA-36519-4000	4.00"	.047" - .087"	3.00"	0.50 lbs

*Specifications for reference only

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
