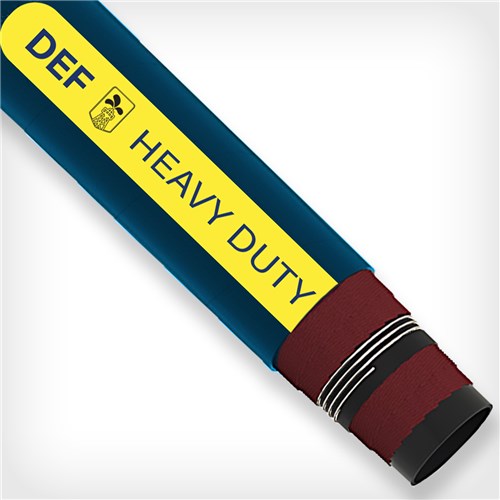

DEF-.75-100 by Texcel | DEF TRANSFER Series | Heavy Duty Diesel Exhaust (DEF) Hose | 3/4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue

$12.17 - $1,013.96

$12.17

$8.69

$8.69 - $724.26

$8.69

Texcel
DEF TRANSFER HOSE Series | Heavy Duty Diesel Exhaust (DEF) Hose

Quantity

Specifications for Variant SKU: DEF-.75-100 Texcel \| 100 \|
Series:	DEF TRANSFER Series
Hose Color(s):	Blue
Internal Diameter:	0.75in

Petroleum Hose

DEF Transfer Diesel Exhaust Fluid Hose

Heavy-duty suction and discharge hose specifically designed for transferring DEF (Diesel Exhaust Fluid) in truck delivery and tank applications.

1

The inner tube is constructed from peroxide-cured EPDM synthetic rubber and tested/certified to ISO-22241.

2

Tube

EPDM, peroxide cured, non-reactive with AdBlue purity

Cover

EPDM, blue, smooth, weather and abrasion resistant

Reinforcement

High tensile textile cord with steel helix

Temperature Range

-22°F to +212°F (-30°C to +100°C)

Working Pressure

150 psi

Certifications

ISO-22241 compliant

3

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in. Hg)	Bend Radius	Weight (lbs/ft)
DEF-.75-100	3/4"	1-1/4"	150	29	3"	0.41
DEF-1.0-100	1"	1-27/64"	150	29	4"	0.52
DEF-1.25-100	1-1/4"	1-44/64"	150	29	5"	0.63
DEF-1.5-100	1-1/2"	1-60/64"	150	29	6"	0.75
DEF-2.0-100	2"	2-3/64"	150	29	8"	1.10
DEF-2.5-100	2-1/2"	2-63/64"	150	29	10"	1.44
DEF-3.0-100	3"	3-35/64"	150	29	12"	1.85
DEF-4.0-100	4"	4-39/64"	150	29	16"	2.73
