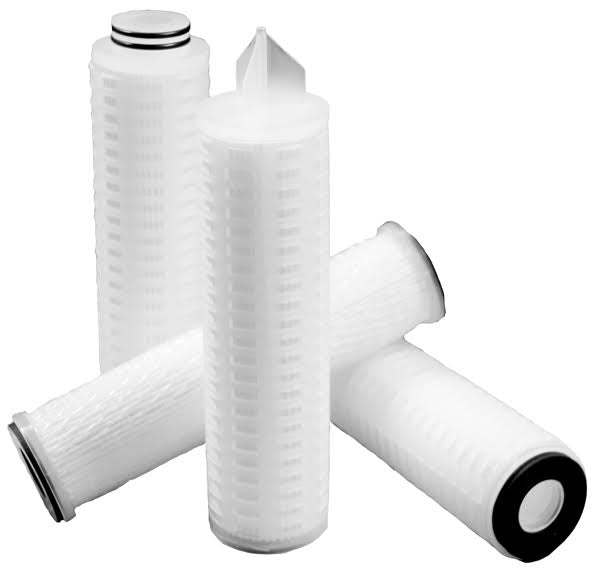

DF-PESF5E6S Dixon Valve PES Membrane Element - Hard Cage/226/Fin - .45 Micron - 20" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)

DF-PESF5E6S Dixon Valve PES Membrane Element - Hard Cage/226/Fin - .45 Micron - 20" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings PES Membrane Element

Package Quantity: 6 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DF-PESF5E6S Dixon
Features:
  • FDA title 21 compliant
  • Cartridge elements are constructed in a clean room environment
  • Cartridge elements have excellent dirt holding capacity with low flow resistance
  • Cartridge elements are free of surfactants, resins, binders, and adhesives
  • Low protein binding and chemical compatibility
  • Naturally hydrophilic media does not need wetting before use
Materials:
  • Cartridge element: polyethersulfone; core material: polypropylene
  • Gasket/O-ring: silicone
Specifications:
  • Maximum differential pressure: 45 PSID
  • Maximum operating pressure: 45 PSID
Part Number Diameter Element Length Style Micron
DF-PESE3E4S 2.65" OD/ 1" Center ID 10" Hard Cage/222/Closed .22
DF-PESE5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .22
DF-PESF5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .45
DF-PESE7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .22
DF-PESF7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .45
DF-PESE3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .22
DF-PESF3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .45
DF-PESE5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .22
DF-PESF5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .45
DF-PESE7E6S 2.65" OD/ 1" Center ID 30" Hard Cage/226/Fin .22
