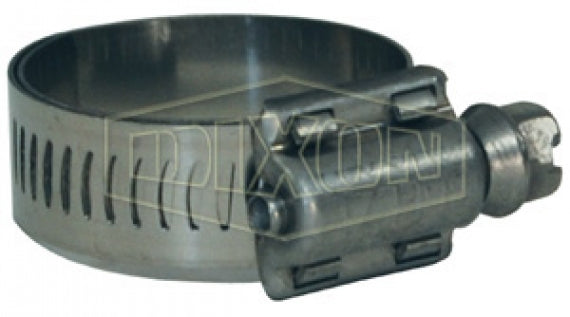

DL9220 by Dixon Valve | Style DL | Aero-Seal® Liner Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 13/16" to 1-3/4" | Stainless Steel Band | Plated Carbon Steel Screw

DL9220 by Dixon Valve | Style DL | Aero-Seal® Liner Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 13/16" to 1-3/4" | Stainless Steel Band | Plated Carbon Steel Screw | Box of 10

$2.57 - $2.57
$2.57
$22.80
$22.80 - $22.80
$22.80

Dixon Valve
Aero-Seal® Liner Worm Gear Clamps | Style DL


Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DL9220 Dixon | 10 |
Brand: Aero-Seal
Series: Style DL
Material(s): Stainless Steel, Plated Carbon Steel
Clamp Width: 0.5
Minimum Clamp I.D.: 0.8125
Maximum Clamp I.D.: 1.75
Features:
  • The integral extension of the band as a liner (no rivets or welds) protects soft surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots
  • Screw design: 5/16" hex slotted hex head
Materials:
  • Style DL
    • Band, Saddle, Housing: Stainless Steel.
    • Screw: Plated Carbon Steel Screw.
  • Style DLS
    • Band and Housing: Stainless Steel.
    • Screw: 410 Stainless Steel Screw.
Style DL
Part Number		 Style DLS
Part Number		 Band Width Hose OD
From To
DL9206 DLS9406 1/2" 7/16" 25/32"
DL9208 DLS9408 1/2" 1/2" 29/32"
DL9210 DLS9410 1/2" 9/16" 1-1/16"
DL9212 DLS9412 1/2" 11/16" 1-1/4"
DL9216 DLS9416 1/2" 13/16" 1-1/2"
DL9220 DLS9420 1/2" 13/16" 1-3/4"
DL9224 DLS9424 1/2" 1-1/16" 2"
DL9228 DLS9428 1/2" 1-5/16" 2-1/4"
DL9232 DLS9432 1/2" 1-9/16" 2-1/2"
DL9236 DLS9436 1/2" 1-13/16" 2-3/4"
DL9240 DLS9440 1/2" 2-1/16" 3"
DL9244 DLS9444 1/2" 2-5/16" 3-1/4"
DL9248 DLS9448 1/2" 2-9/16" 3-1/2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
