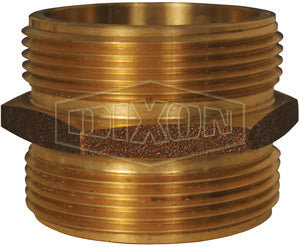

DMH2020-D Dixon Cast Brass Double Male Hex Nipple - 2" Male NPT x 2" Male NSPH (Domestic)

DMH2020-D Dixon Cast Brass Double Male Hex Nipple - 2" Male NPT x 2" Male NSPH (Domestic)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Fire Fittings
Double Male Hex Nipples - Cast Brass - Domestic

Made to approved Dixon Powhatan specifications.
Specifications for Variant SKU: DMH2020-D Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Male NPSH
Material(s): Brass
Part Number Male Thread Male Thread Powhatan Part #: Weight
(Lbs.)
DMH1010F-D 1" NPT 1-1/2" NST (NH) 14-146-01084 0.3400
DMH1015F-D 1" NPT 1-1/2" NST (NH) 14-146-00090 0.5600
DMH1515-D 1-1/2" NPT 1-1/2" NPSH 14-146-00110 0.5000
DMH1515F-D 1-1/2" NPT 1-1/2" NST (NH) 14-146-00115 0.5950
DMH1525F-D 1-1/2" NPT 2-1/2" NST (NH) 14-146-00187 2.5800
DMH15F15F-D 1-1/2" NST (NH) 1-1/2" NST (NH) 14-146-00132 0.6000
DMH15F15S-D 1-1/2" NST (NH) 1-1/2" NPSH 14-146-00118 0.5500
DMH15F25F-D 1-1/2" NST (NH) 2-1/2" NST (NH) 14-146-00188 2.5600
DMH2015F-D 2" NPT 1-1/2" NST (NH) 14-146-00157 0.8600
DMH2020-D 2" NPT 2" NSPH 14-146-00167 1.0000
DMH2025F-D 2" NPT 2-1/2" NST (NH) 14-146-00367 1.5900
DMH2515F-D 2-1/2" NPT 1-1/2" NST (NH) 14-146-00192 2.3600
DMH2525F-D 2-1/2" NPT 2-1/2" NST (NH) 14-146-00221 1.5200
DMH25F25F-D 2-1/2" NST (NH) 2-1/2" NST (NH) 14-146-00259 1.6800
DMH3025F-D 3" NPT 2-1/2" NST (NH) 14-146-00294 2.5400
DMH3030F-D 3" NPT 3" NST (NH) 14-146-00313 4.0600
DMH4045F-D 4" NPT 4-1/2" NST (NH) 14-146-00354 7.2200
DMH6060F-D 6" NPT 6" NST (NH) 14-146-00431 4.6000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
