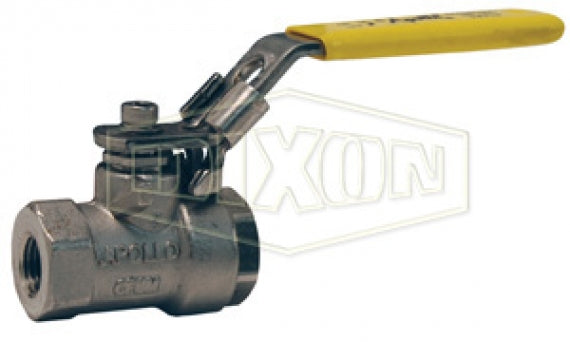

DSBV200 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 2" Female NPT x 2" Female NPT | 316 Stainless Steel

DSBV200 by Dixon Valve | 2-Piece Domestic Ball Valve | Full Port | 2" Female NPT x 2" Female NPT | 316 Stainless Steel

Save $263.41 Save $263.41
$658.53
$658.53 - $658.53
$658.53
$395.12
$395.12 - $395.12
$395.12

Dixon Valve & Coupling
2-Piece Domestic Ball Valve | 316 Stainless Steel
Specifications for Variant SKU: DSBV200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless ball and stem.
  • RPTFE seal.
  • Vinyl handle cover.
Specifications:
  • Temperature range: -40°F to 400°F (-40°C to 204°C).
  • Pressure rating: 1,000 PSI CWP.
  • Pressure rating: 150 PSI saturated steam.
  • Vacuum service to 29 inches Hg.
Part Number Female NPT x Female NPT Port
DSBV25 1/4" Full
DSBV38 3/8" Full
DSBV50 1/2" Full
DSBV75 3/4" Full
DSBV100 1" Full
DSBV125 1-1/4" Full
DSBV150 1-1/2" Full
DSBV200 2" Full
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
