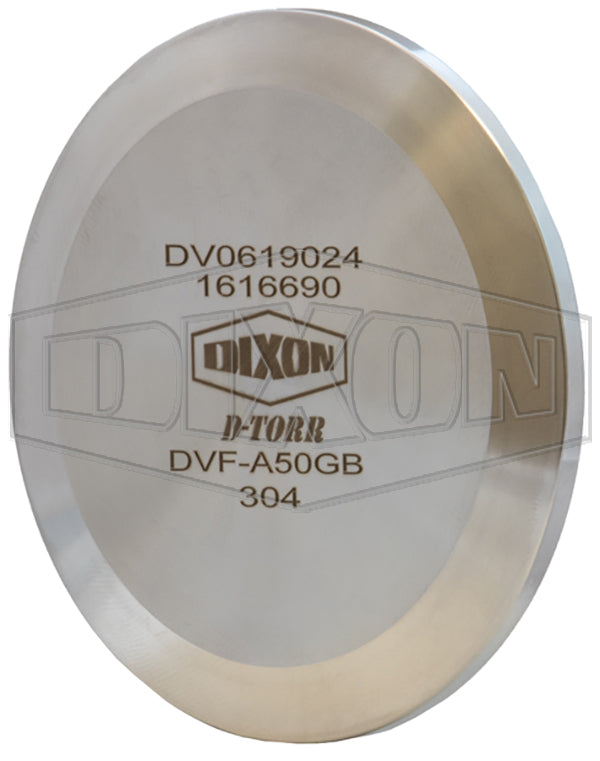

DVF-A25GB Dixon Valve KF Blank Flange for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

DVF-A25GB Dixon Valve KF Blank Flange for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

Save $0.89 Save $0.89
$8.01
$8.01 - $8.01
$8.01
$7.12
$7.12 - $7.12
$7.12

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Blank Flange - 304 Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DVF-A25GB Dixon
Material(s): 304 Stainless Steel
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B
DVF-A10GB KF10 1.18" 0.12"
DVF-A16GB KF16 1.18" 0.11"
DVF-A25GB KF25 1.58" 0.13"
DVF-A40GB KF40 2.17" 0.12"
DVF-A50GB KF50 2.95" 0.12"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
