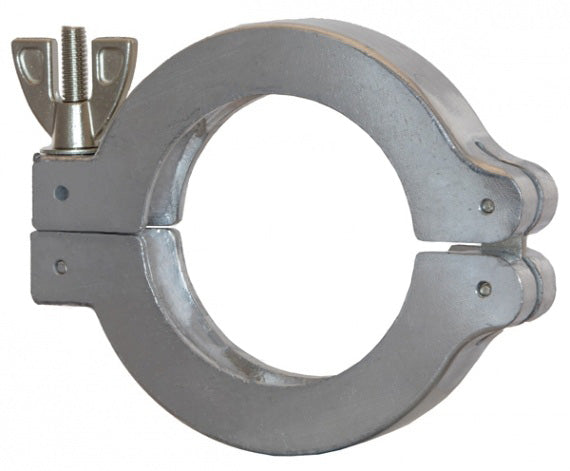

DVF-A40LH Dixon Valve KF Clamp for D-TORR Vacuum Fitting - Flange Size: KF40 - Aluminum

DVF-A40LH Dixon Valve KF Clamp for D-TORR Vacuum Fitting - Flange Size: KF40 - Aluminum

Save $6.31 Save $6.31
$15.78
$15.78 - $15.78
$15.78
$9.47
$9.47 - $9.47
$9.47

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Clamp - Aluminum
Specifications for Variant SKU: DVF-A40LH Dixon
Material(s): Aluminum
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C
DVF-A1016LH KF10 & KF16 1.69" 2.39" 0.63"
DVF-A25LH KF25 2.14" 2.80" 0.63"
DVF-A40LH KF40 2.75" 3.44" 0.63"
DVF-A50LH KF50 3.50" 4.25" 0.71"
