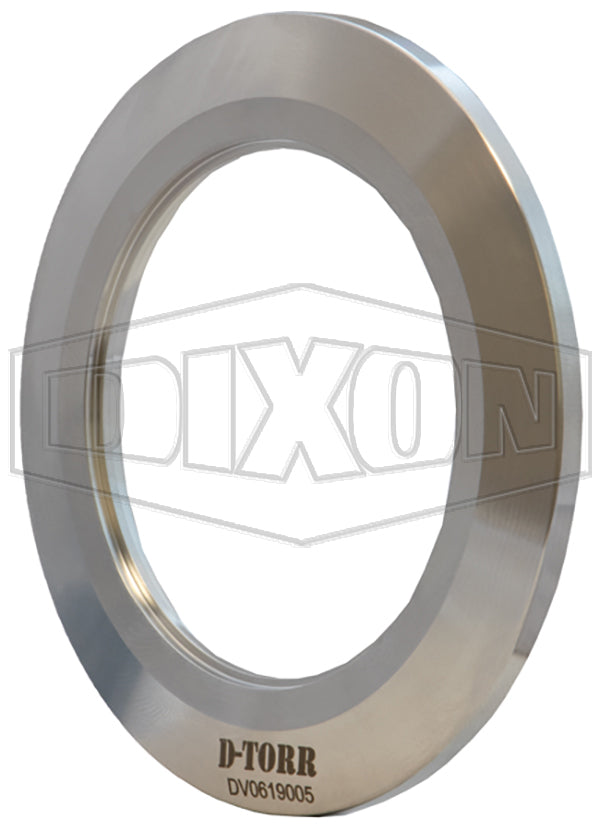

DVF-A50GA Dixon Valve KF Bored Ferrule (Flange) for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

DVF-A50GA Dixon Valve KF Bored Ferrule (Flange) for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

Save $11.46 Save $11.46
$28.65
$28.65 - $28.65
$28.65
$17.19
$17.19 - $17.19
$17.19

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Bored Flange - 304 Stainless Steel

Vacuum sealing for 1/2"- 2" OD tubing in the semiconductor industry
Specifications for Variant SKU: DVF-A50GA Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C D
DVF-A10GA KF10 0.51" 0.45" 1.18" 0.12"
DVF-A16GA KF16 0.76" 0.68" 1.18" 0.11"
DVF-A25GA KF25 1.01" 0.94" 1.58" 0.13"
DVF-A40GA KF40 1.51" 1.43" 2.17" 0.12"
DVF-A50GA KF50 2.01" 1.94" 2.95" 0.12"
