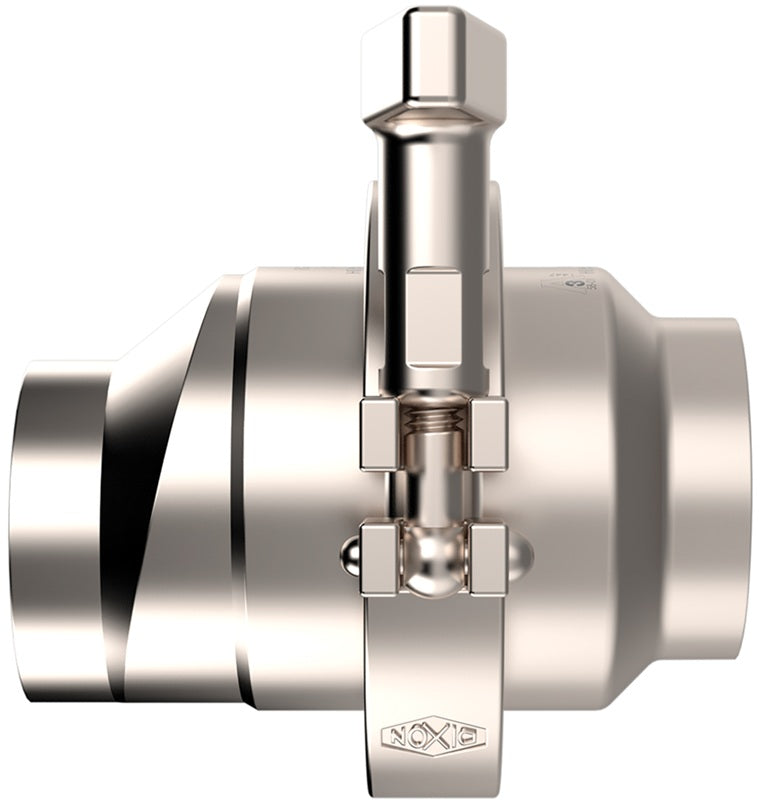

EHSCE050BB Dixon Valve EHSC Spring Check Valve - 1/2" Weld Connection - EPDM Gasket - 316L Stainless Steel

EHSCE050BB Dixon Valve EHSC Spring Check Valve - 1/2" Weld Connection - EPDM Gasket - 316L Stainless Steel

Save $29.90 Save $29.90
$228.86
$228.86 - $228.86
$228.86
$198.96
$198.96 - $198.96
$198.96

Dixon Sanitary Fittings EHSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCE050BB Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Weld End, 1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCE050BB 1/2" 10.0 PSI 145 PSI
EHSCE075BB 3/4" 4.0 PSI 145 PSI
EHSCE100BB 1" 2.5 PSI 145 PSI
EHSCE150BB 1-1/2" 1.0 PSI 145 PSI
EHSCE200BB 2" 1.5 PSI 145 PSI
EHSCE250BB 2-1/2" 0.8 PSI 145 PSI
EHSCE300BB 3" 0.5 PSI 145 PSI
EHSCE400BB 4" 0.4 PSI 145 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
