EJ3809-05-1008S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -08 Hose Barb | Steel

EJ3809-05-1008S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -08 Hose Barb | Steel

Name: EJ3809-05-1008S E-Z Clip System by Danfoss | Compression Fitting | A/C Refrigeration Fitting | -10 Compression x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ3809-05-1008S Danfoss
Price: 125.24 USD
Availability: InStock

$125.24 - $125.24

$125.24

$125.24 - $125.24

$125.24

Danfoss A/C & Refrigeration

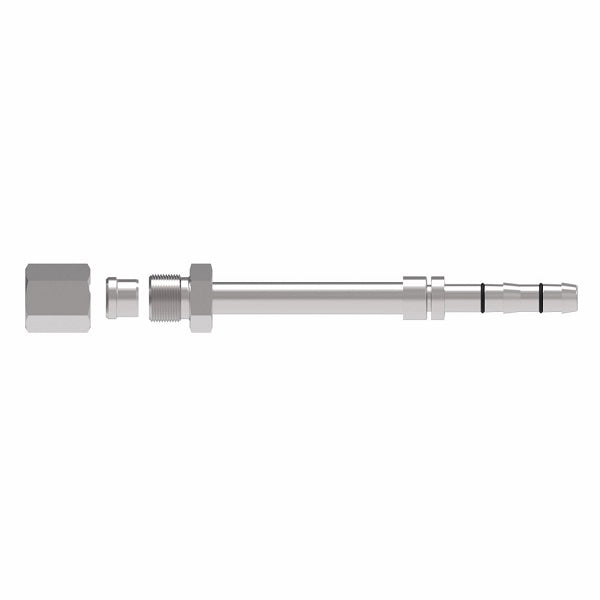

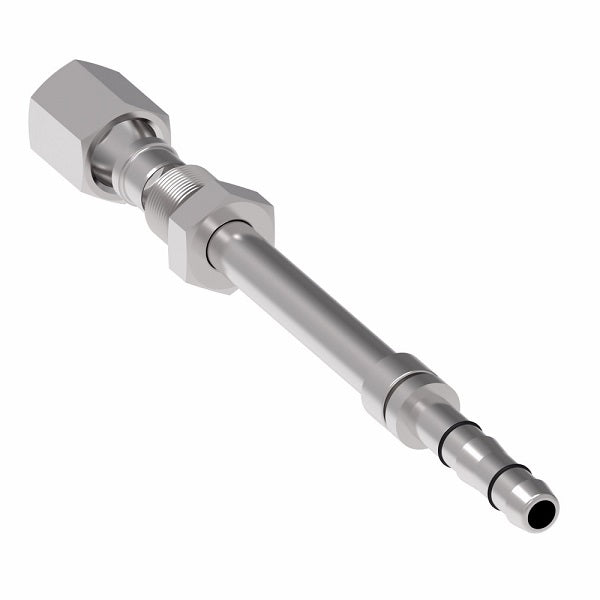

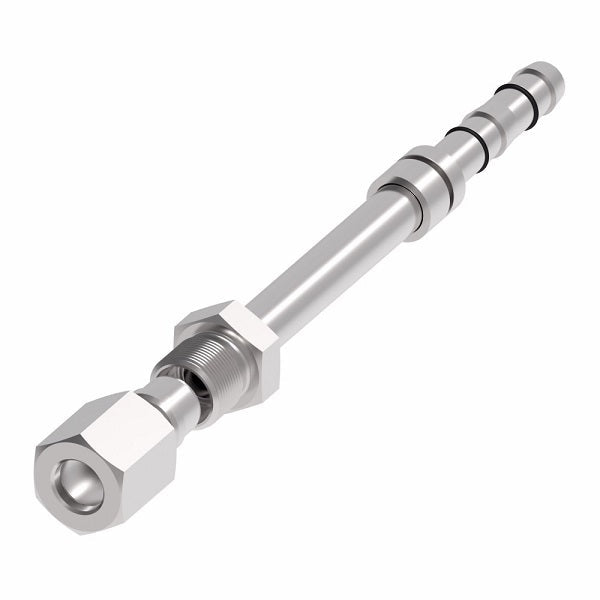

E-Z Clip System - Compression Fitting - Straight

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: EJ3809-05-1008S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	Straight
Ends Configuration:	5/8in Tube Compression, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	Ref.	Clip & Cage Kit (Required)
EJ3809-11-0506S	1/2-20	-06	4.91"	3.38"	0.69"	FF14171
EJ3809-01-0606S	9/16-18	-06	4.92"	3.40"	0.69"	FF14171
EJ3809-02-0806S	3/4-16	-06	4.93"	3.40"	0.88"	FF14171
EJ3809-03-0608S	9/16-18	-06	4.94"	3.40"	0.69"	FF14171
EJ3809-04-0808S	3/4-16	-08	4.84"	3.30"	0.88"	FF14172
EJ3809-05-1008S	7/8-14	-08	4.73"	3.19"	1.00"	FF14172
EJ3809-06-0810S	3/4-16	-10	4.85"	3.30"	0.88"	FF14173
EJ3809-07-1010S	7/8-14	-10	4.64"	3.09"	1.00"	FF14173
EJ3809-08-1012S	7/8-14	-12	4.66"	3.09"	1.00"	FF14174
EJ3809-09-1212S	1-1/16-12	-12	4.98"	3.40"	1.25"	FF14174
EJ3809-10-1210S	1-1/16-12	-10	5.05"	3.50"	1.25"	FF14173
