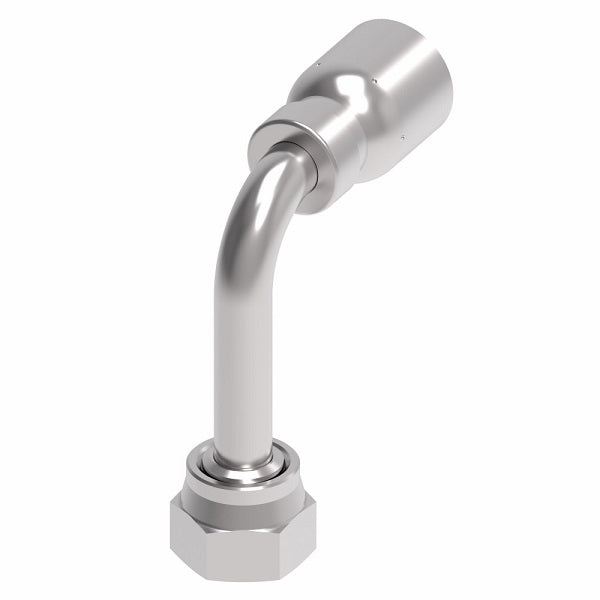

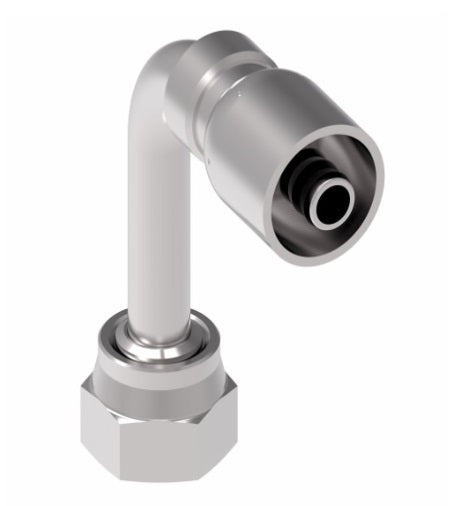

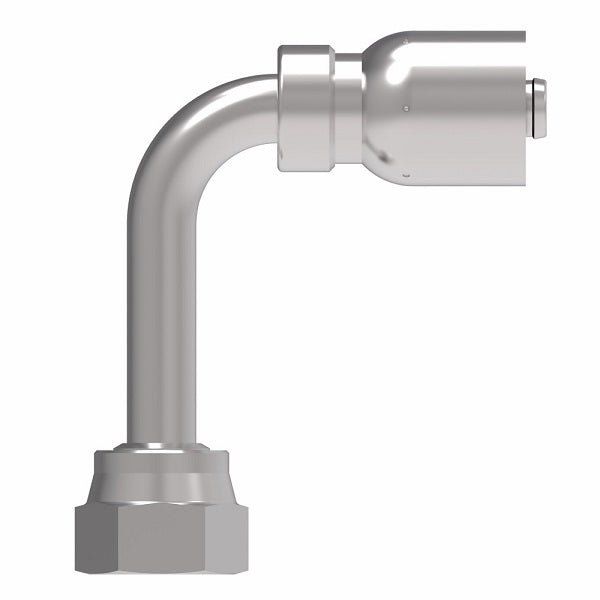

EJ5041-1010S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

EJ5041-1010S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel

Name: EJ5041-1010S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -10 Female O-Ring Face Seal Swivel x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ5041-1010S Danfoss
Price: 73.0 USD
Availability: InStock

$73.00 - $73.00

$73.00

$73.00 - $73.00

$73.00

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel Long Drop 100R5 Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: EJ5041-1010S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
EJ5041-0606S	-06	11/16-16	1.98"	1.98"	2.10"	0.81"
EJ5041-1010S	-10	1-14	2.30"	1.42"	2.78"	1.13"
EJ5041-1616S	-16	1-7/16-12	3.19"	2.20"	4.50"	1.63"
