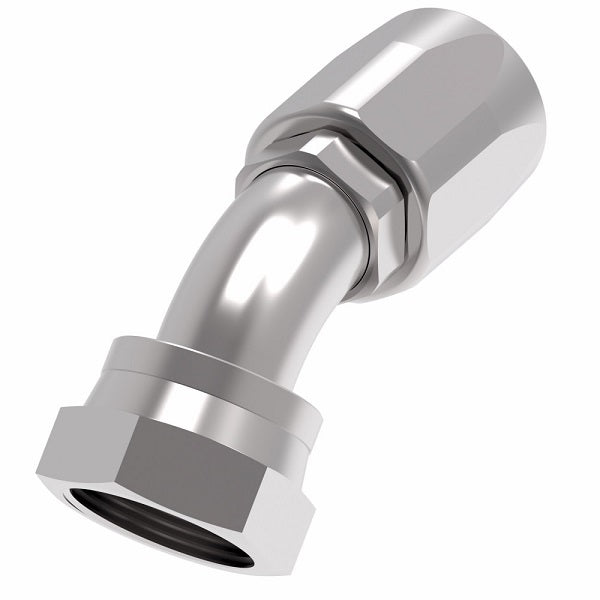

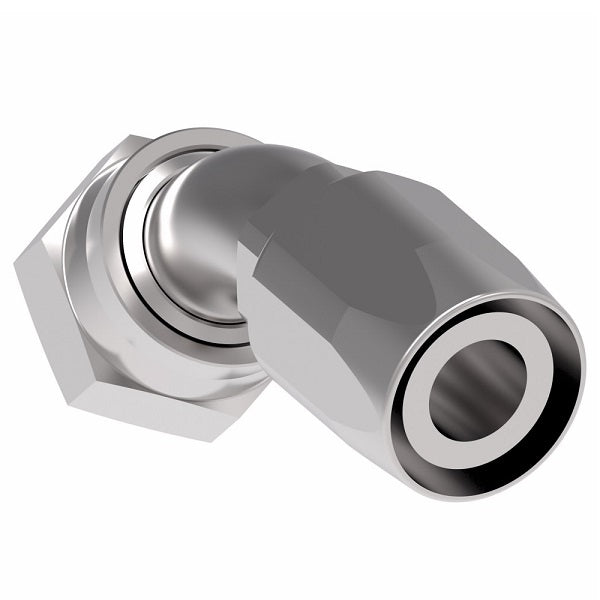

EJ5361-1212S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

EJ5361-1212S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

Name: EJ5361-1212S by Danfoss | Female ORS Swivel 45° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5361-1212S Danfoss
Price: 118.14 USD
Availability: InStock

$118.14 - $118.14

$118.14

$118.14 - $118.14

$118.14

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - 45° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Specifications for Variant SKU: EJ5361-1212S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dim.	Hole dia.	Hex	O-Ring ref
EJ5361-1212S	12"	12"	1-3/16x12	3.84"	2.26"	0.83"	0.47"	1-3/8"	FF91026-12
EJ5361-1616S	16"	16"	1-7/16x12	3.62"	2.35"	0.94"	0.69"	1-5/8"	FF91026-16
EJ5361-2020S	20"	20"	1-11/16x12	4.08"	2.72"	0.98"	0.95"	1-7/8"	FF91026-20
EJ5361-2424S	24"	24"	2x12	4.32"	2.86"	1.06"	1.16"	2-1/4"	FF91026-24

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
