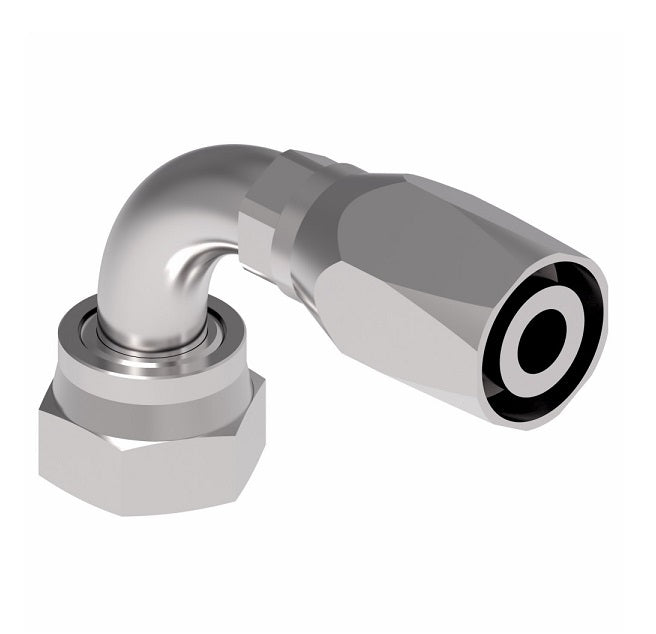

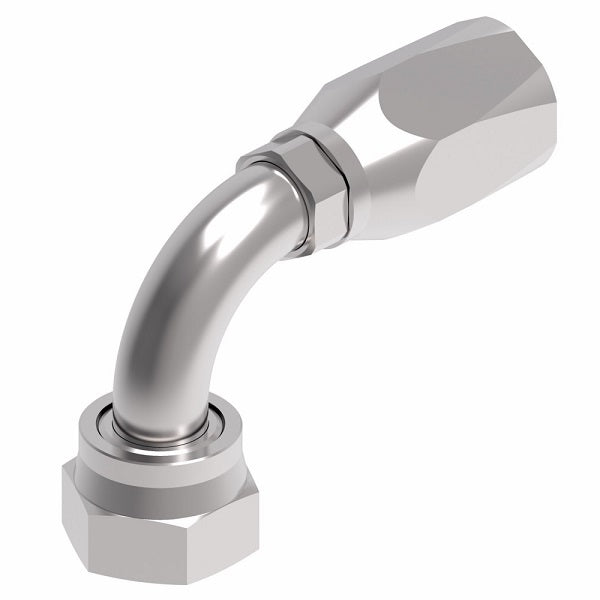

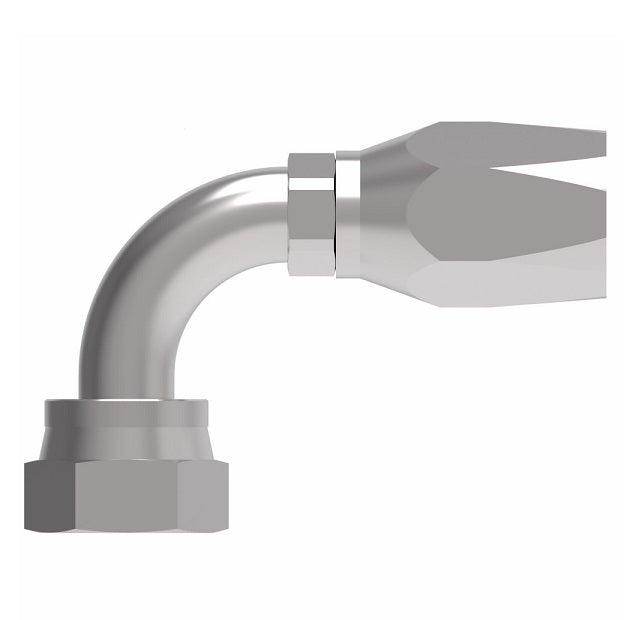

EJ5362-1212S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
EJ5362-1212S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
EJ5362-1212S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
EJ5362-1212S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

EJ5362-1212S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

$151.38 - $151.38
$151.38
$151.38 - $151.38
$151.38

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ5362-1212S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC800 Series
Steel
Part Number 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Drop dim. Hole dia. Hex O-Ring ref
EJ5362-1212S 12" 12" 1-3/16x12 3.74" 2.17" 1.90" 0.47" 1-3/8" FF91026-12
EJ5362-1616S 16" 16" 1-7/16x12 3.55" 2.28" 2.22" 0.69" 1-5/8" FF91026-16
EJ5362-2020S 20" 20" 1-11/16x12 4.02" 2.65" 2.50" 0.95" 1-7/8" FF91026-20
EJ5362-2424S 24" 24" 2x12 4.42" 2.97" 2.70" 1.16" 2-1/4" FF91026-24
