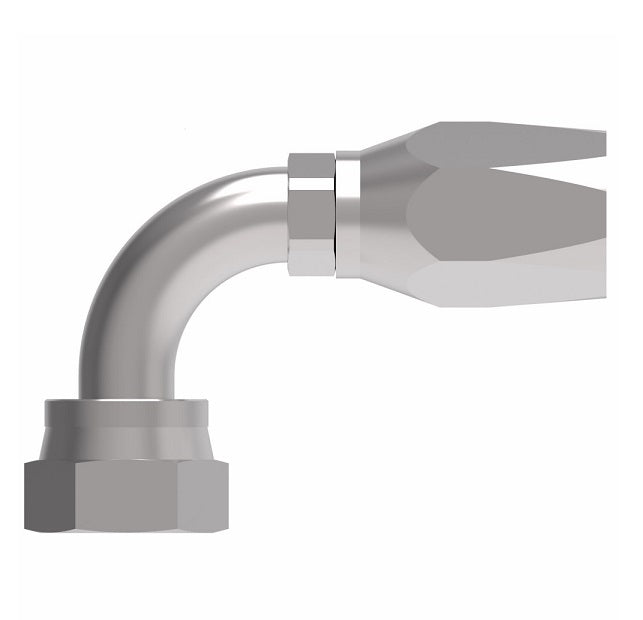

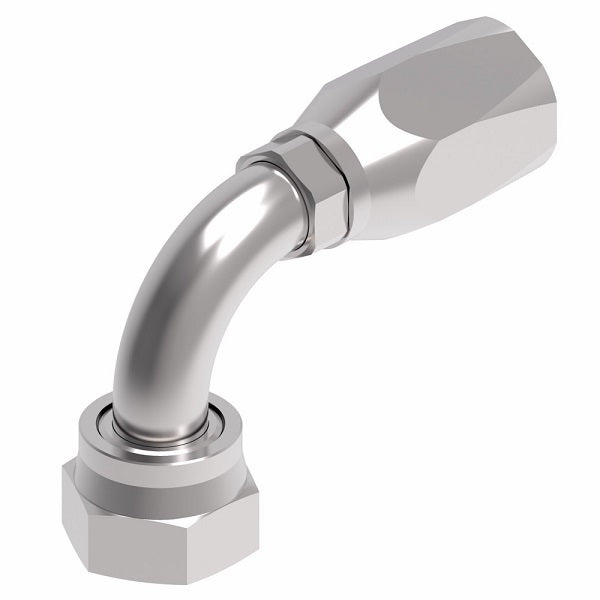

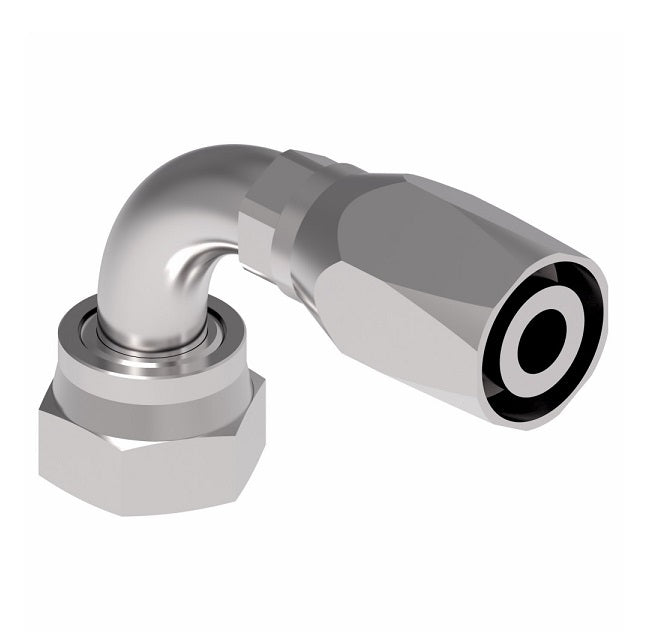

EJ5362-1616S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

EJ5362-1616S by Danfoss | Female ORS Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel | Pack of 10

$906.60 - $906.60

$906.60

$906.60 - $906.60

$906.60

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female ORS Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Package Quantity: 10 Units

Specifications for Variant SKU: EJ5362-1616S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dim.	Hole dia.	Hex	O-Ring ref
EJ5362-1212S	12"	12"	1-3/16x12	3.74"	2.17"	1.90"	0.47"	1-3/8"	FF91026-12
EJ5362-1616S	16"	16"	1-7/16x12	3.55"	2.28"	2.22"	0.69"	1-5/8"	FF91026-16
EJ5362-2020S	20"	20"	1-11/16x12	4.02"	2.65"	2.50"	0.95"	1-7/8"	FF91026-20
EJ5362-2424S	24"	24"	2x12	4.42"	2.97"	2.70"	1.16"	2-1/4"	FF91026-24
