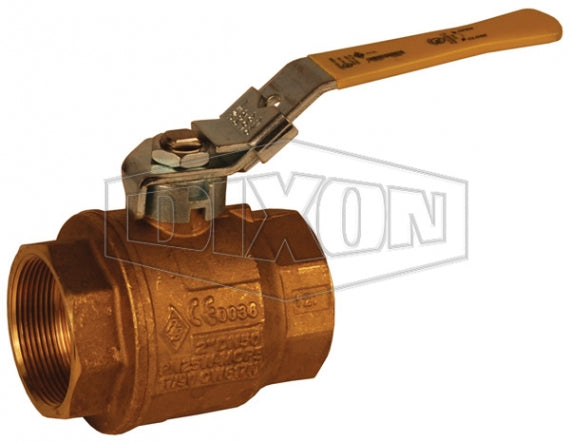

FBVL75 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 3/4" Female NPT x 3/4" Female NPT | Forged Brass

FBVL75 by Dixon Valve | Imported Ball Valve with Locking Handle | Full Port | 3/4" Female NPT x 3/4" Female NPT | Forged Brass

Save $27.15 Save $27.15
$67.87
$67.87 - $67.87
$67.87
$40.72
$40.72 - $40.72
$40.72

Dixon Valve & Coupling
Imported Ball Valve with Locking Handle | Forged Brass

For control of air, water, oil and gas in hose or pipe lines.
Specifications for Variant SKU: FBVL75 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Forged Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
Materials:
  • PTFE seat, seal, and thrust washer.
  • Chrome-plated brass ball and plated steel handle.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure ratings: 600 PSI WOG; 150 PSI working steam pressure.
Part Number Female NPT x Female NPT Port
FBVL50 1/2" Full
FBVL75 3/4" Full
FBVL100 1" Full
FBVL125 1-1/4" Full
FBVL150 1-1/2" Full
FBVL200 2" Full
FBVL250 2-1/2" Full
FBVL300 3" Full
FBVL400 4" Full
