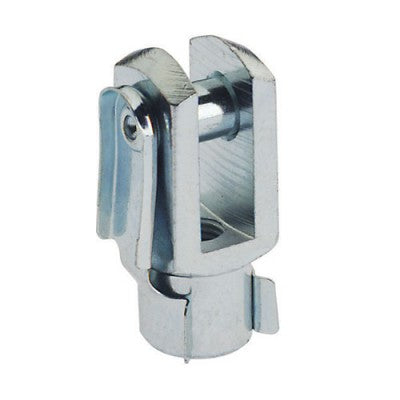

FC125 AIGNEP | Cyl Accessories Series | Rod Clevis with Pin CS Ø125 For ISO Cylinders

FC125 by AIGNEP | Cyl Accessories Series | Rod Clevis with Pin CS | Ø125 | For ISO Cylinders

Save $19.09 Save $19.09
$100.25
$100.25 - $100.25
$100.25
$81.16
$81.16 - $81.16
$81.16
Specifications for Variant SKU: FC125 AIGNEP
Series: Cyl Accessories Series

Rod Clevis And Pin

Component Specifications:

Body Material: Steel

Product Number Bore Body Material Thread Type
FC008 8 - 10 mm Steel M4
FC012 12 - 16 mm Steel M6
FC020 20 mm Steel M8 x 1.25
FC025 25 - 32 mm Steel M10 x 1.25
FC040 40 mm Steel M12 x 1.25
FC050 50 - 63 mm Steel M16 x 1.5
FC080 80 - 100 mm Steel M20 x 1.5
FC125 125 mm Steel M27 x 2
FC160 160 - 200 mm Steel M36 x 2
FC250 250 mm Steel M42 x 2
FC320 320 mm Steel M48 x 2

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
