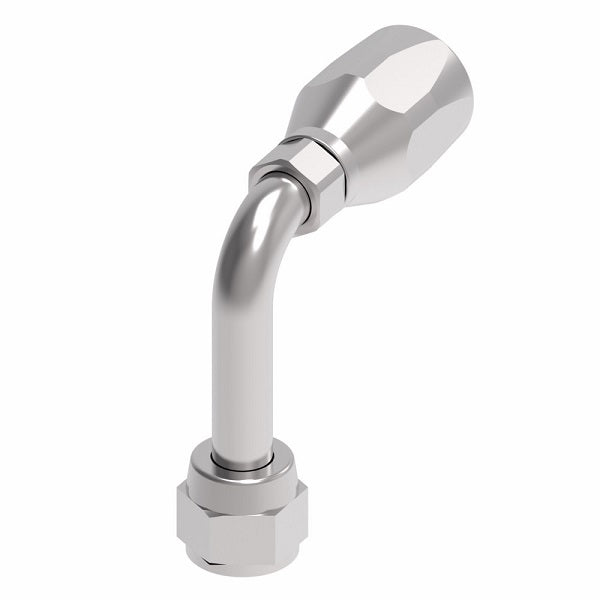

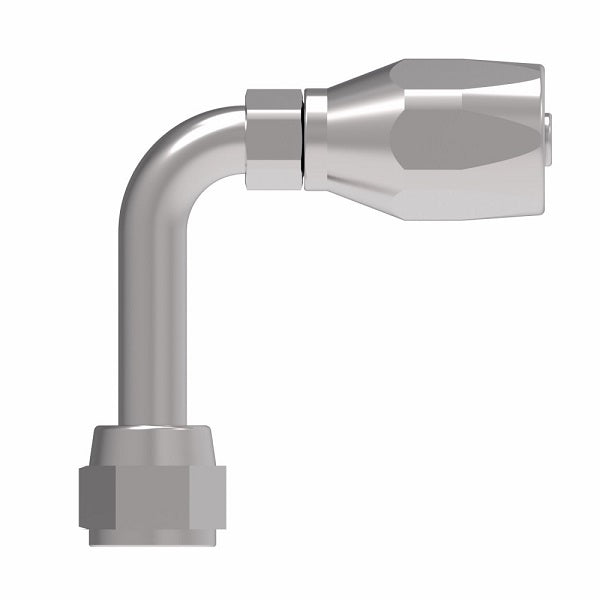

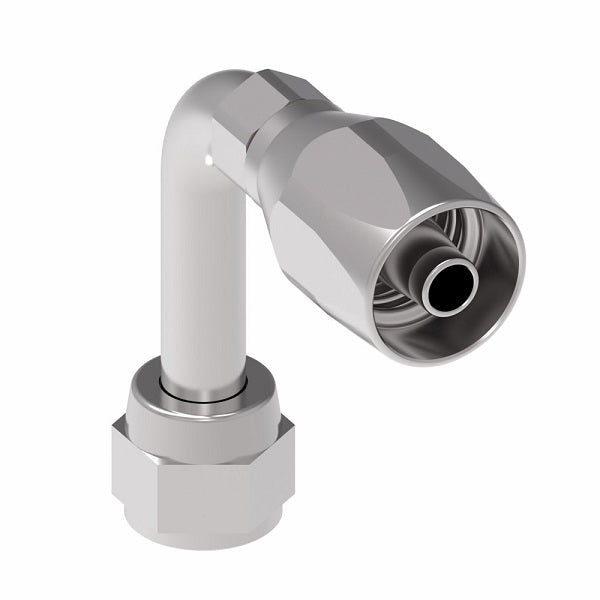

FC5142-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel -04 Reusable Hose End | Steel
FC5142-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel -04 Reusable Hose End | Steel
FC5142-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel -04 Reusable Hose End | Steel
FC5142-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel -04 Reusable Hose End | Steel

FC5142-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Long Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel -04 Reusable Hose End | Steel

$58.64 - $58.64
$58.64
$58.64 - $58.64
$58.64

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5142-0404S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: FC310 Series  |   FC510 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
FC5142-0404S -04 7/16-20 2.36" 1.15" 0.17" 1.80"
FC5142-0606S -06 9/16-18 2.72" 1.25" 0.31" 2.18"
FC5142-0808S -08 3/4-16 3.15" 1.50" 0.39" 2.43"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
