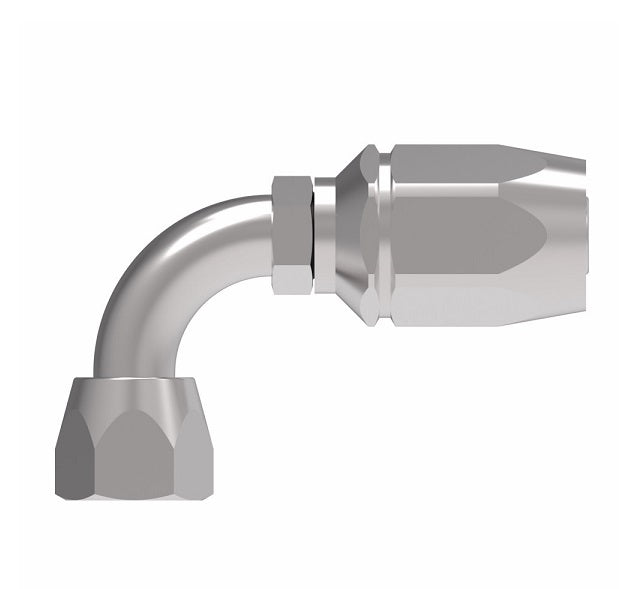

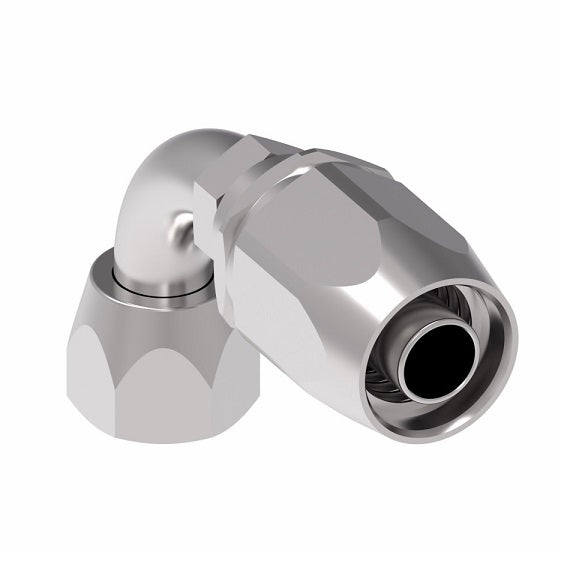

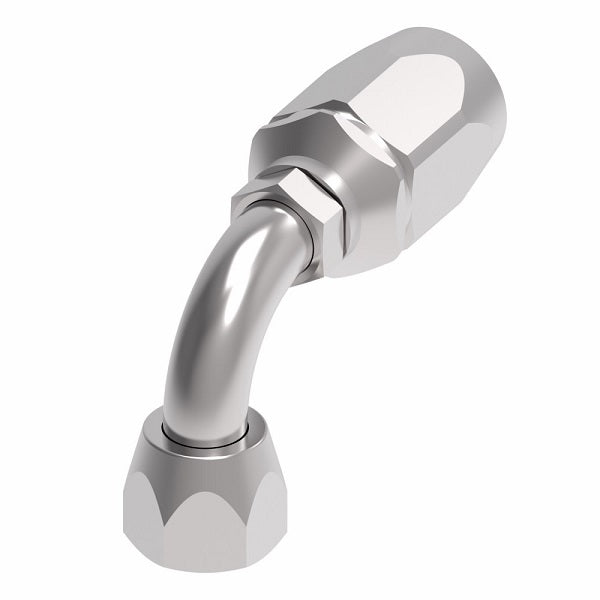

FC5992-0808S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

FC5992-0808S Aeroquip by Danfoss | Female 37° JIC Swivel Short Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$635.60 - $635.60

$635.60

$635.60 - $635.60

$635.60

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel Short Drop - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5992-0808S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5992-0404S	-04	7/16-20	2.40"	1.23"	0.17"	0.68"
FC5992-0606S	-06	9/16-18	2.72"	1.38"	0.31"	0.85"
FC5992-0808S	-08	3/4-16	3.02"	1.52"	0.39"	1.09"
FC5992-1008S	-08	-	-	-	-	-
FC5992-1212S	-12	1-1/16-12	4.11"	2.24"	0.61"	1.82"
FC5992-1616S	-16	1-5/16-12	4.84"	2.79"	0.82"	2.39"
