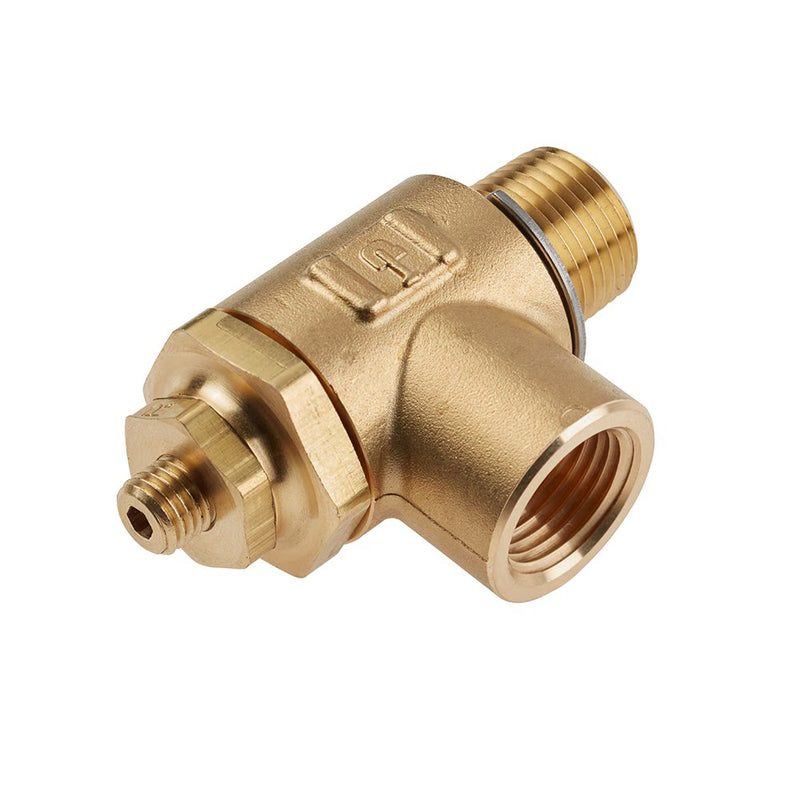

FC703-4 by Parker | Threaded Port Meter Out Metal Flow Control | 1/4" Female NPT x 1/4" Male NPT Thread | 15/16" Hex | 2.52" Length | 90° Elbow | Brass

Save $11.87

$55.82

$55.82 - $55.82

$55.82

$43.95

$43.95 - $43.95

$43.95

by Parker Hannifin
Brass Flow Controls:FC703 Threaded Port Meter Out Metal Flow Control – NPT

Specifications for Variant SKU: FC703-4 Parker
Series:	FC703 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Silicone Free, Valved, Flow Control

Product Features:	Controls the speed of a pneumatic actuator All brass Construction Allen wrench adjusting screw NPT and BSPP threads Threaded and Push-to-Connect bodies UL94 V-0 Flame Resistance Standard Silicone Free
Markets:	Factory/Process Automation Petrochemical Automotive Process
Applications:	Robotics Welding End-of-Arm Tooling Factory Automation Automotive Assembly Packaging etc.
Pressure Range:	15 to 150 psi (1.0 to 10.34 bar)
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Polyethylene 95FR Polyurethane 95 Durometer Shore A Semi-rigid Nylon FEP Fluoropolymer


Part Number	NPT	Hex 1	Hex 2	H Open	H Closed	L
FC703-2	1/8"	7/16"	5/8"	1.84"	1.70"	.67"
FC703-4	1/4"	5/8"	15/16"	2.52"	2.34"	1.00"
FC703-6	3/8"	5/8"	15/16"	2.44"	2.29"	1.00"
FC703-8	1/2"	13/16"	1-1/8"	2.72"	2.60"	1.31"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
