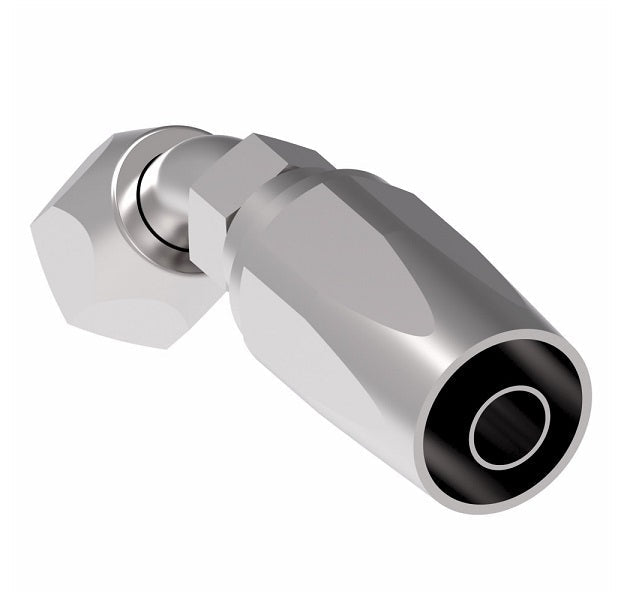

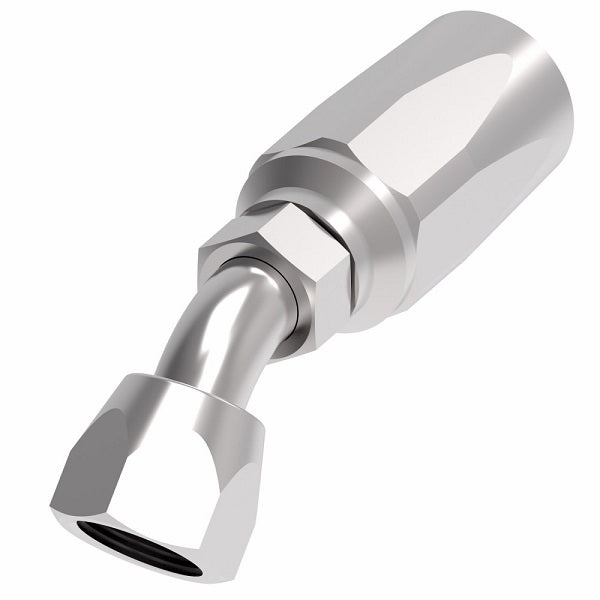

FC7990-0606S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC7990-0606S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC7990-0606S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC7990-0606S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

FC7990-0606S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel 45° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$70.68 - $70.68
$70.68
$70.68 - $70.68
$70.68

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7990-0606S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ HØ
FC7990-0404S -04 7/16-20 2.37" 1.33" 0.17" 0.33"
FC7990-0606S -06 9/16-18 2.75" 1.62" 0.31" 0.39"
FC7990-0808S -08 3/4-16 3.24" 1.77" 0.39" 0.55"
FC7990-1616S -16 1-5/16-12 4.88" 2.75" 0.82" 1.07"
>
