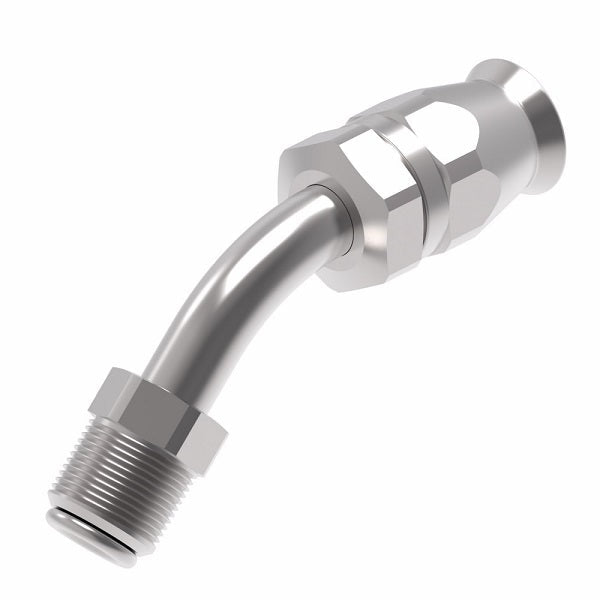

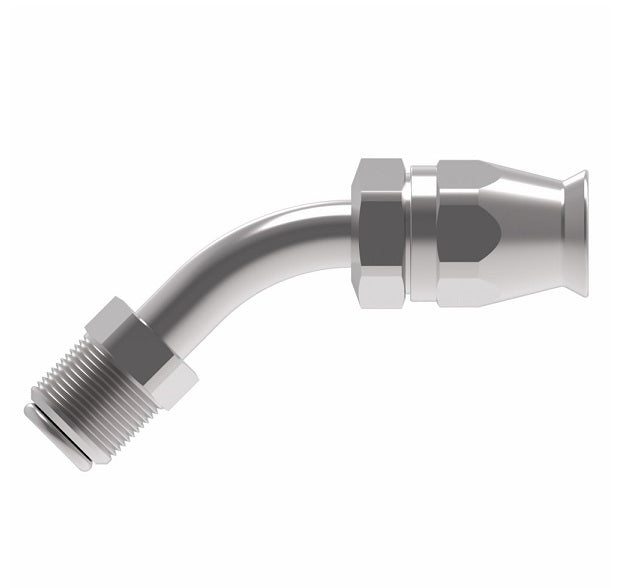

FC9063-1010S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -10 SAE Male SAE Inverted Flare x -10 Reusable Hose End | Steel

FC9063-1010S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -10 SAE Male SAE Inverted Flare x -10 Reusable Hose End | Steel

Name: FC9063-1010S Aeroquip by Danfoss | Male SAE Inverted Flare 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -10 SAE Male SAE Inverted Flare x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC9063-1010S Danfoss
Price: 149.86 USD
Availability: InStock

$149.86 - $149.86

$149.86

$149.86 - $149.86

$149.86

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Male SAE Inverted Flare - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9063-1010S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Male Inverted Flare, 5/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
-	-04	-	-	-	-	-	900568-4B	900568-4C
FC9063-0505S	-05	1/2-20	2.46"	1.94"	0.23"	0.96"	900568-5B	900568-5C
FC9063-0506S	-06	1/2-20	2.50"	1.97"	0.21"	0.96"	900568-6B	900568-6C
FC9063-0606S	-06	5/8-18	2.50"	1.97"	0.28"	0.96"	900568-6B	900568-6C
FC9063-0808S	-08	3/4-18	2.66"	2.04"	0.38"	0.93"	900568-8B	900568-8C
FC9063-1010S	-10	7/8-18	2.96"	2.29"	0.47"	1.03"	900568-10B	900568-10C
